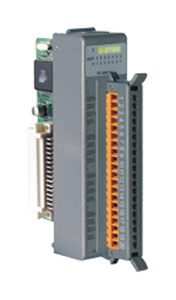

ICP DAS I-87066 - Solid state relay module ( DC type) (8 points)
by ICP DAS
|
|
|
|
8 Channel Solid State Relay Output Module, DC Type
|
|
|
I-87066 has a serial bus (RS-485) communication interface with DCON protocol. It can be plugged into our WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87066 is a SSR-DC (Solid State Relay-DC Type) Module with 8 channels. I-87066 is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.
| Output Channels |
8 |
| Output Type |
DC SSR, Form A (Normal Open) |
| RatedLoad Voltage |
3 to 30VDC |
| Rated Load Current |
1.0 Arms |
| Max. Operate Time |
1 ms |
| Max. Release Time |
1 ms |
| Max. On-state Voltage Drop |
1.2Vrms |
| Max. Off-state Leakage Current |
0.1mA at 30VDC |
| Insulation Resistance |
Min. 1,000 MOhm, at 500VDC |
| Dielectric Strength |
2500 Vrms |
| Life |
Long Life, Maintenance Free |
| LED Display |
1 LED as Power/ Communication Indicator |
| 8 LEDs as Power Relay Output Indicators |
| Power Consumption |
0.7W |
| Operating Temperature |
-25°C to 75°C |
| Storage Temperature |
-30°C to 75°C |
| Humidity |
5% to 95%, Non-condensing |
| Dimensions |
31mm x 67mm x 114mm (W x D x H) |
|
|
|
|
