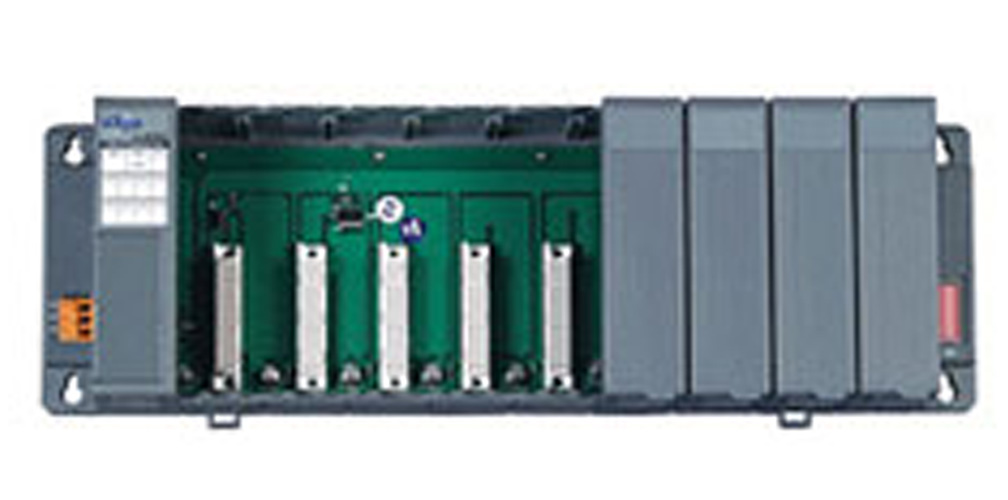

ICP DAS I-87K9 - RS 485 I/O expansion unit includes 20 W power, B881 backplane, 9 I/O slot
by ICP DAS

By implementing external serial expansion racks, users are able to easily implement a greater amount of I/O onto an existing industrial control infrastructure. I-87K9 has a serial bus (RS-485) communication interface with DCON protocol. It is equipped with one power module, and 8 Input/Output slots. It is used to expand I/O modules via the RS-485 interface. Only i-87K and m-87K series I/O modules can plug in the unit.

• COM2
• Data+, Data-
• directly drive 256 of 7000 modules
• Isolation voltage : 3000Vdc
• RS-485, 115.2K BPS max.
• 16550 compatible, 16 bytes FIFO
• max. distance: 4000 feet (1.2 Km)

I/O Expansion Slot

• Support serial I/O
•  4 slots for I-87K4
• 5 slots for I-87K5
• 8 slots for I-87K8
• 9 slots for I-87K9

Power Supply

• Unregulated +10Vdc to +30Vdc
• 20W

Environment

• Operating temp.: –20°C to +75°C.
• Storage Temperature: –30°C to +85°C.
• Humidity: 5 ~ 95%, non-condensing
