Moxa M-3802 - I/O Module, 8AI, 4~20mA, single-ended, 12bit, RTB
by MOXA
|
|
|
|
I/O Module, 8AI, 4~20mA, single-ended, 12bit, RTB
|
|
|
I/O Module, 8AI, 4~20mA, single-ended, 12bit, RTB
| Analog Inputs |
8 channels |
| Resolution in Ranges |
12 bits, 3.91 µA/bit |
| Input Current Range |
4 to 20 mA (single-ended) |
| Data Format |
16-bit integer (2’s complement) |
| Accuracy |
• ±0.1%, FSR @ 25°C
• ±0.3%, FSR @ 0°C, 60°C |
| Input Impedance |
120 ohms |
| Conversion Time |
4 ms for all channels |
| Power Consumption |
80 mA @ 5 VDC |
| Isolation |
I/O to logic (photocoupler isolation) |

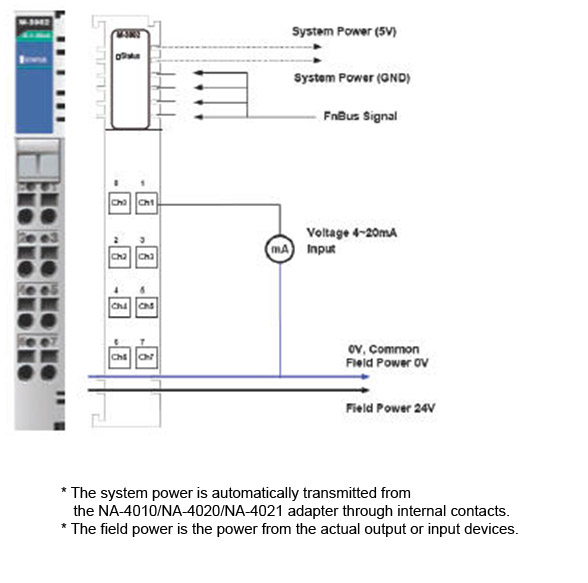

| Wiring |
I/O cable max. AWG14 |
|
|
|
|
