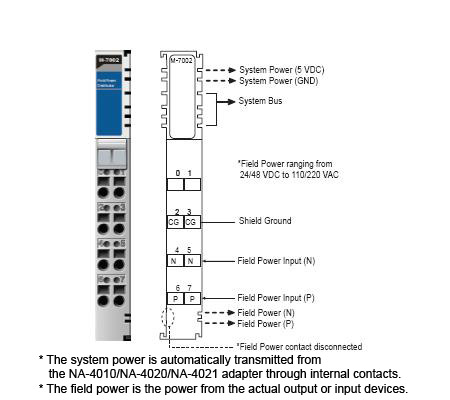

I/O Module, F. Power Dist., 10A (24/48VDC, 110/220VAC)

Description
Specification
Datasheet

I/O Module, F. Power Dist., 10A (24/48VDC, 110/220VAC)

Analog Input
Channel		4
Wiring		Differential
Input Range		+/-150 mV, +/-500 mV, +/-1 V , +/-5 V, +/-10 V +/-20 mA , 0~20 mA, 4~20 mA (Jumper selectable)
Resolution		12/16-bit
Accuracy	Normal Mode	0.1%
	Fast Mode	0.5%
Sampling Rate	Normal Mode	10 Hz
	Fast Mode	60 Hz
Input Impedance	Voltage	2 M
	Currnet	139 Ω
Common Voltage Protection		+/-200 VDC
Individual Channel Configuration		Yes
Overvoltage Protection		240 Vrms
Digital Input/Counter
Channel		5
Contact		Wet
Sink/Source (NPN/PNP)		Sink/Source
On Voltage Level		10 ~ 50 VDC
Off Voltage Level		+4 VDC Max.
Counter (50 Hz, 16-bit)		Yes
Input Impedance		10 kΩ
Overvoltage Protection		+/-70 VDC
Isolation Voltage		3750 VDC
Relay Output
Channel		4
Type		Power Relay (Form A)
Contact Rating		5 A @ 250 VAC 5 A @ 30 VDC
Surge Strength		3000 VDC
Operate Time		6 ms
Release Time		3 ms
Mechanical Endurance		2 × 107 ops.
Electrical Endurance		105 ops.
Power-on Value		Yes
Safe Value		Yes
Communication
Interface		RS-485
Format		N, 8, 1
Baud Rate		1200 ~ 115200bps
Protocol		DCON Modbus/RTU
Watchdog		Yes, Module, Communication (Programmable)
LED Indicator/Display
System LED Indicator		Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator		-
7-Segment LED Display		Yes
Isolation
Intra-Module Isolation, Field-to-Logic		2500 VDC
EMS Protection
ESD (IEC 61000-4-2)		+/-4 kV
EFT (IEC 61000-4-4)		+/-4 kV
Surge (IEC 61000-4-5)		+/-3 kV
Power
Reverse Polarity Protection		Yes
Input Voltage Range		10 ~ 30 VDC
Consumption		1.8 W
Mechanical
Dimensions (W x L x H)		72 mm x 123 mm x 35 mm
Installation		DIN-Rail or Wall Mounting
Environment
Operating Temperature		-25 ~ +75°C
Storage Temperature		-40 ~ +85°C
Humidity		10 ~ 95% RH, Non-condensing
