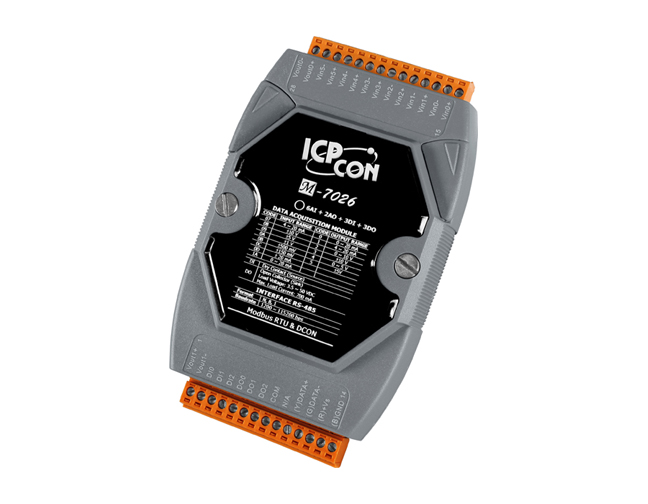

ICP DAS M-7026 - Modbus RTU Data Acquisition Module, Analog, Digital Inputs & Outputs
by ICP DAS
|
|
|
|
Modbus RTU Based Data Acquisition Module With 6 Analog Inputs, Current Input
(±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0-20mA, 4-20mA), 2 Analog Outputs, 3
Digital Inputs (with Counter) and 3 Digital Outputs. Supports Operating Temp
Between -25°C ~ +75°C (-13°F ~ +167°F).
|
|
|
The M-7026 is a Modbus RTU based multifunction module with 6 analog inputs, 2
analog outputs, 3 digital inputs, and 3 digital outputs . It provides a
programmable input range on all analog inputs (+/-150 mV, +/-500 mV, +/-1 V,
+/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA). The analog outputs are 12-bit at +/-5
V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA. All digital outputs can be set as alarm
outputs. Each analog input can be configured for an individual range and
provides a high overvoltage protection of 240 Vrms. Voltage and current
inputs/outputs are jumper selectable.
- Multifunction (6 AI, 2 AO, 3 DI and 3 DO)
- Supports Fast Mode and Normal Mode
- Individual Channel Configuration
- Open Wire Detection for Current Output
- Overload and Short Circuit Protection for Digital Output
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Supports Modbus RTU Protocol
- 240 Vrms Overvoltage Protection for Voltage Input
- Jumper Selectable Voltage or Current Input/Output
- Dual Watchdog
- ±4 kV Contact ESD Protection
- Wide Operating Temperature Range: -25 ~ +75°C
|
Analog Input |
|
Channels |
6 |
|
Wiring |
Differential |
|
Range |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
±20 mA , 0 ~ 20 mA, 4 ~ 20 mA(Jumper Selectable) |
|
Resolution |
16-bit |
|
Accuracy |
Normal Mode |
±0.1% of FSR |
|
Fast Mode |
±0.5% or better |
|
Sampling Rate |
Normal Mode |
10 Samples/Sec. |
|
Fast Mode |
60 Samples/Sec. (Total) |
|
Bandwidth |
Normal Mode |
15.7 Hz |
|
Fast Mode |
78.7 Hz |
|
Input Impedance |
Voltage |
2 MΩ |
|
Current |
140 Ω |
|
Common Voltage Protection |
±200 V |
|
Individual Channel Configuration |
Yes |
|
Overvoltage Protection |
240 Vrms |
|
Overcurrent Protection |
Yes, 50 mA at 110 VDC |
|
Virtual Channel to Channel Isolation |
Yes,400 VDC |
|
Open Wire Detection for 4 ~ 20 mA |
Yes |
|
Analog Output |
|
Channels |
2 |
|
Range |
+0 ~ +5 VDC, +0 ~ +10 VDC,
±5 VDC, ±10 VDC,
+0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
|
Resolution |
12-bit |
|
Accuracy |
±0.1% of FSR |
Output Capacity
Voltage Output Capability |
10 V @ 20 mA |
|
Open Wire Detection |
Yes, for 4 ~ 20 mA only |
|
Power-on Value |
Yes, Programmable |
|
Safe Value |
Yes, Programmable |
|
Digital Input/Counter |
|
Channels |
3 |
|
Type |
Dry Contact |
Source |
|
Wet Contact |
- |
|
Wet Contact |
On Voltage Level |
- |
|
Off Voltage Level |
- |
|
Dry Contact |
On Voltage Level |
Close to GND |
|
Off Voltage Level |
Open |
|
Counters |
Max. Count |
65535 (16-bit) |
|
Max. Input Frequency |
100 Hz |
|
Min. Pulse Width |
5 ms |
|
Input Impedance |
- |
|
Channel-to-Channel Isolation |
- |
|
Overvoltage Protection |
- |
|
Safe Value |
Yes, Programmable |
|
Digital Output |
|
Output Channels |
3 |
|
Type |
Open Collector |
|
Sink/Source (NPN/PNP) |
Sink |
|
Load Voltage |
+ 3.5 VDC ~ + 50 VDC |
|
Max. Load Current |
700 mA/Channel |
|
Overvoltage Protection |
60 VDC |
|
Overload Protection |
Yes |
|
Short-circuit Protection |
Yes |
|
Power-on Value |
Yes, Programmable |
|
Safe Value |
Yes, Programmable |
|
Communication |
|
Interface |
RS-485 |
|
RS-485 Bias Resistor |
No (An RS-485 master is required to provide the bias.) |
|
Format |
N, 8, 1 |
|
Baud Rate |
1200 ~ 115200 bps |
|
Protocol |
Modbus RTU, DCON |
|
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
|
LED Indicators/Display |
|
System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
|
I/O LED Indicators |
- |
|
7-Segment LED Display |
- |
|
Isolation |
Intra-module Isolation,
Field-to-Logic |
2500 VDC |
|
EMS Protection |
|
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
|
±8 kV Air for random point |
|
EFT (IEC 61000-4-4) |
±4 kV for Power Line |
|
Surge (IEC 61000-4-5) |
±3 kV for Power Line |
|
Power |
|
Reverse Polarity Protection |
Yes |
|
Input Range |
10 ~ 30 VDC |
|
Consumption |
1.8 W |
|
Mechanical |
|
Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
|
|
|
|
