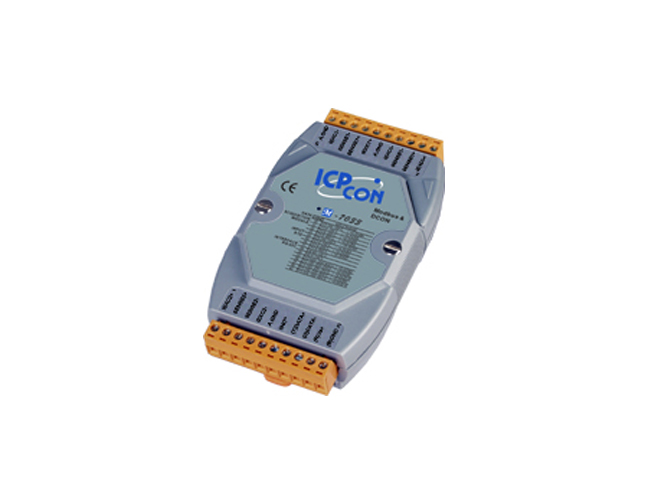

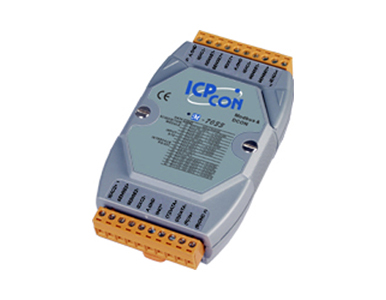

M-7033 - 3 Channel RTD Analog Input Data Acquisition Module, communicable over Modbus RTU and RS-485
by ICP DAS
|
|
|
|
3 Channel RTD Analog Input Data Acquisition Module, communicable over Modbus
RTU and RS-485. Supports operating temperatures between -25 to 75°C.
|
|
|
The M-7000 series is a family of network data acquisition and control modules
that support Modbus RTU. They can be remotely controlled using a set of commands
called DCON protocol. With the Modbus RTU protocol, it can easily communicate
with most popular SCADA/ HMI software and PLCs.
- LED Display with 4 1/2 digits (for M-7033D only)
- Communication Interface: RS-485
- Din Rail Mount
- Analog Input Channels: 3
- Input Type: Pt , Ni
- Wire connection: 2/3/4 wire
|
Analog Input |
|
Input Channels |
3 |
|
Input Type |
RTD |
|
Wire connection |
2/3/4 wire |
|
RTD Type |
Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385 |
|
Resolution |
16-bit |
|
Sampling Rate |
15/12.5 samples/ second while filter at 60/ 50Hz |
|
Accuracy |
+/-0.1% |
|
Band Width |
15.7Hz |
|
Zero Drift |
+/-0.5uV/°C |
|
Span Drift |
+/-25uV/°C |
|
Common Mode Rejection |
150dB min |
|
Normal Mode Rejection |
100dB min |
|
Open Wire Detection |
Yes |
|
Intra-module Isolation, Field to Logic |
3000 VDC |
|
Interface |
|
Interface |
RS-485 |
|
Format |
N, 8, 1 |
|
Baud Rate |
1200 ~ 115200bps |
|
LED Display |
|
1 LED as Power/ Communication indicator |
|
4 1/2 digits (for M-7033D) |
|
Power |
|
Input Voltage Range |
+10 to +30 VDC |
|
Power Consumption |
1.0 W (M-7033) / 1.6W (M-7033D) |
|
Protocol |
|
Support Modbus and DCON Protocol |
Yes |
|
Environment |
|
Operating temperature |
-25 to 75°C |
|
Storage temperature |
-40 to 85°C |
|
Humidity |
5 to 95% RH, non-condensing |
RTD Temperature Range
|
Type Code |
RTD Type |
Temperature Range °C |
|
20 |
Platinum 100, α= 0.00385 |
-100 ~ 100 |
|
21 |
Platinum 100, α= 0.00385 |
0 ~ 100 |
|
22 |
Platinum 100, α= 0.00385 |
0 ~ 200 |
|
23 |
Platinum 100, α= 0.00385 |
0 ~ 600 |
|
24 |
Platinum 100, α= 0.003916 |
-100 ~ 100 |
|
25 |
Platinum 100, α= 0.003916 |
0 ~ 100 |
|
26 |
Platinum 100, α= 0.003916 |
0 ~ 200 |
|
27 |
Platinum 100, α= 0.003916 |
0 ~ 600 |
|
28 |
Nickel 120 |
-80 ~ 100 |
|
29 |
Nickel 120 |
0 ~ 100 |
|
2A |
Platinum 1000, α= 0.00385 |
-200 ~ 600 |
|
2E |
PT 100, α= 0.00385 |
-200°C ~ +200°C |
|
2F |
PT 100, α= 0.003916 |
-200°C ~ +200°C |
|
80 |
PT 100, α= 0.00385 |
-200°C ~ +600°C |
|
81 |
PT 100, α= 0.003916 |
-200°C ~ +600°C |
|
82 |
Cu 50 at 0°C |
-50 ~ 150 |
|
|
