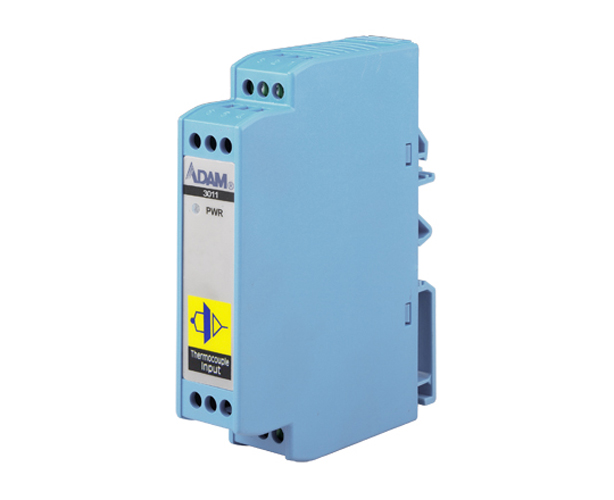

Advantech ADAM-3011- *Discontinued* - ISOLATED THERMOCOUPLE INPUT MODULE
by Advantech
|
|
|
|
- 1000 VDC, fully isolated
- Configurable thermocouple type
- Flexible DIN-rail mounting
- Linearized thermocouple measurement
- Operates from a single +24VDC
- Temperature range of 0 to 50°C
|
|
|
The ADAM-3011 is field-configurable, isolation-base, thermocouple input signal conditioner. ADAM-3011 uses microprocessor-controlled high-resolution 16-bit dual-slope, integrating A/D converter to acquire thermocouple signal and cold junction compensation input.
Thermocouple Input
- Common Mode Rejection: 115 dB min
- Input Type
T/C type |
Temperature Range (°C) |
Accuracy at 25°C (°C) |
J |
-40 ~ 760 |
±2 |
K |
0 ~ 1,000 |
±2 |
T |
-100 ~ 400 |
±2 |
E |
0 ~ 1,000 |
±2 |
S |
500 ~ 1,750 |
±4 |
R |
500 ~ 1,750 |
±4 |
B |
500 ~ 1,800 |
±4 |
- Isolation: 1,000 VDC (Three-way)
- Output Impedance: 0.5 Ω
- Stability (Temperature Drift): ±2°C
- Voltage Output: 0 ~ 10 V
General
- Connectors: Screw terminal
- Enclosure: ABS
- Indicators: Power LED indicator
- Isolation: 1,000 VDC
- Power Consumption: 1.4 W
- Power Input: 24 VDC ± 10%
- Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -25 ~ 85°C (-13 ~ 185°F)
|
|
|
|
