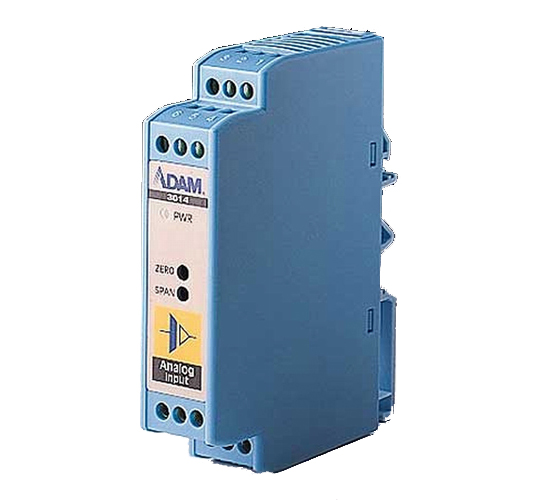

Advantech ADAM-3014 - *Discontinued* - ISOLATED DC INPUT/OUTPUT MODULE
by Advantech
|
|
|
|
- 1000 V DC , fully isolated
- Easy input/output range configuration
- Flexible DIN-rail mounting
- Low power consumption, 0.85 W (Voltage Output)
- Operates from single +24 VDC
- Temperature range 0 to 70°C
- Wide input/output range
|
|
|
The ADAM-3014 is one of the most cost-effective, field-configurable, isolation-based signal conditioners available for protecting processed signals from harm-ful effects of ground loop, motor noise, and other electrical interference. The ADAM-3014 features a new optical isolation technique to provide 1000 VDC isolation with low power consumption and extreme accuracy and stability within a wide range of operating environments.
I/O
- Accuracy: ±0.1% of full range (typical)
- Common Mode Rejection: > 100 dB @ 50 Hz/60 Hz
- Current Input Bipolar: ±20 mA Unipolar: 0 ~ 20 mA Input impedance: 250 Ω
- Current Output: 0 ~ 20 mA
- Stability (Temperature Drift): 150 ppm (typical)
- Voltage Input:
- Bipolar input: ±10 mV, ±50 mV, ±100 mV, ±0.5 V, ±1.0 V, ±5 V, ±10 V
- Unipolar input: 0 ~ 10 mV, 0 ~ 50 mV, 0 ~ 100 mV, 0 ~ 0.5 V, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V
- Input impedance: 2 MΩ
- Input bandwidth: 2.4 kHz (typical)
- Voltage Output:
- Bipolar: ±5 V, ±10 V
- Unipolar: 0 ~ 10 V
- Impedance: < 50 Ω
- Drive: 10 mA max.
General
- Connectors: Screw terminal
- Enclosure: ABS
- Indicators: Power LED indicator
- Isolation (Three-way): 1,000 VDC
- Power: 0.85 W (voltage output)
- Consumption: 1.2 W (current output)
- Power Input: 24 VDC ±10%
- Operating Temperature: -10 ~ 70°C (14 ~ 158°F)
- Storage Temperature: -25 ~ 85°C (-13 ~ 185°F)
|
|
|
|
