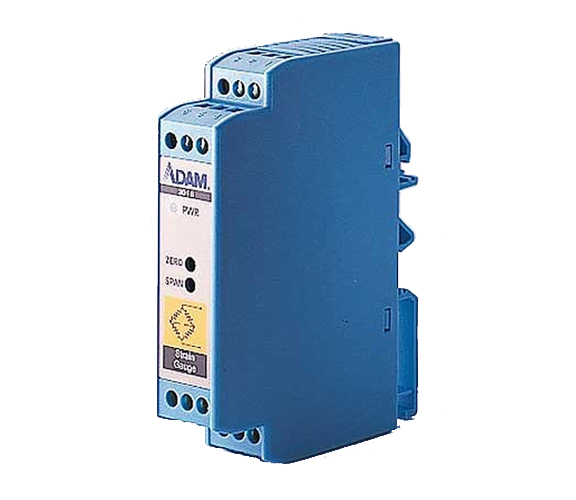

ADAM-3016 is a DIN rail-mounted strain gauge input signal conditioning module with 1000 V DC 3-way isolation between input, output and power. The switch con-figurable input and output offers flexible, wide ranging capability for strain gauge. ADAM-3016 is equipped with a power LED to monitor the line power and a DC-to-DC converter status and 3 VR (ZERO, SPAN, EXCI) to calibrate input/output range and excitation voltage.
Voltage specifications
• Electrical input: ± 10 mV, ± 20 mV, ± 30 mV, ±50 mV, ±100 mV
• Excitation voltage: 1 ~ 10 VDC (60 mA max) (factory default 10 V)
Output
• Voltage output
- Bipolar: ±5 V, ±10 V
- Unipolar: 0 ~ 10 V
- Impedance: < 50 W
• Current output
- Current: 0 ~ 20 mA
- Current load resistor: 0 ~ 500 W (source) Specifications
General
• Three-way isolation: 1000 VDC
• Accuracy: ±0.1% of full range
• Bandwidth: 2.4 kHz (typical)
• Stability (temperature drift): 150 ppm (typical)
•Isolation mode rejection: >100 dB @ 50 Hz/60 Hz
• Operation temperature range: -10° to 70° C
Power
• Range: 24 VDC ±10%
• Consumption: £ 1.85 W (voltage output) £ 2.15 W (current output)
