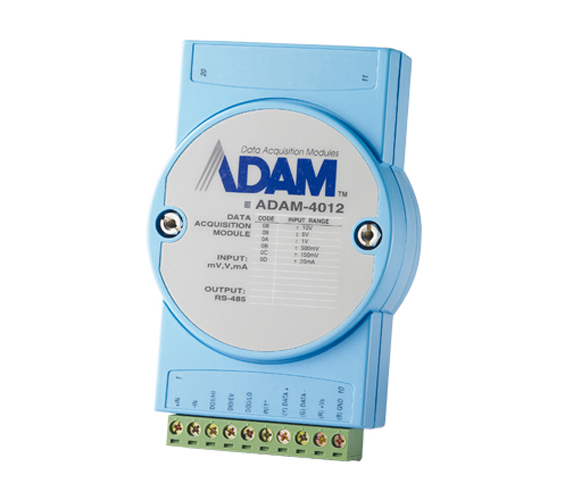

Advantech ADAM-4012 - "Discontinued" -ANALOG INPUT MODULE W/2 D OUT
by Advantech
|
|
|
|
The ADAM-4000 series is a set of intelligent sensor-to-computer interface analog I/O modules containing a built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol.
The 4000 series provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.
|
|
|
Wiring is simple using two wires to communicate with their controller or other RS-485 devices. ADAM-4000 modules use the EIA RS-485 communication protocol; the industry's most widely used bi-directional, balanced transmission line suitable for industrial environments.
Software Configuration and Calibration
ADAM analog I/O modules contain no pots or switches to set. By merely issuing a command from the host computer, you can change an analog input module to accept several ranges of voltage input, thermocouple input or RTD input.
Watchdog Timer
A watchdog timer supervisory function will automatically reset the ADAM modules in the event of system failure. Maintenance is thus simplified.
General
- Power Consumption: 1.2 W @ 24 VDC
- Supported Protocols: ASCII command
Analog Input
- Channels: 1
- Input Impedance
Voltage: 20 MΩ
Current: 125 Ω (Added by user)
- Input Type: mV, V or mA
- Input Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V and ±20 mA
- Accuracy
Voltage mode: ±0.1% or better
Current mode: ±0.2% or better
- Span Drift: ±25 ppm/°C
- Zero Drift: ±6 µV/°C
Digital Input
Logic level 0: 1 V max.
Logic level 1: 3.5 ~ 30 V
pull up current: 0.5 mA, 10 kΩ resistor to 5 V
Max. input freq.: 50 Hz
Min. input pulse width: 1 msec.
Digital Output
- Channels: 2, open collector to 30 V, 30 mA max. load
- Power Dissipation: 300 mW
|
|
|
|
