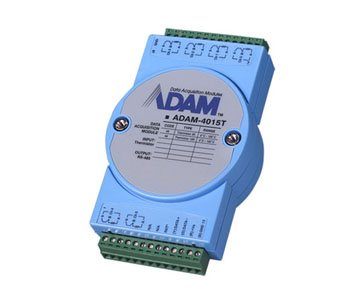

Wiring is simple using two wires to communicate with their controller or other RS-485 devices. ADAM-4000 modules use the EIA RS-485 communication protocol; the industry's most widely used bi-directional, balanced transmission line suitable for industrial environments.
Software Configuration and Calibration
ADAM analog I/O modules contain no pots or switches to set. By merely issuing a command from the host computer, you can change an analog input module to accept several ranges of voltage input, thermocouple input or RTD input.
Watchdog Timer
A watchdog timer supervisory function will automatically reset the ADAM modules in the event of system failure. Maintenance is thus simplified.
Analog Input
- Effective Resolution: 16-bit
- Channels: 6 differential
- Input Type: Thermistor
- Thermistor Types and Temperature Ranges
Thermistor 3K 0 ~ 100° C
Thermistor 10K 0 ~ 100° C
- Isolation Voltage: 3000 VDC
- Sampling Rate: 10 samples / sec.
- Input Impedance: 10 MΩ
- Bandwidth: 2.62 Hz
- Input Connections: 2 or 3 wires
- Accuracy: ± 0.05% or better
- Zero Drift: ± 3 µV/° C
- Span Drift: ± 25 ppm/° C
- CMR @ 50/60 Hz: 150 dB
- NMR @ 50/60 Hz: 100 dB
- Built-in Watchdog Timer
- Individual Wire Burned-out Detection
Power
- Power Requirement: Unregulated 10~30 VDC
- Power Consumption: 1.2 W @ 24 VDC
