Advantech ADAM-4017 - "Discontinued" - 8-CHANNEL ANALOG INPUT MODULE
by Advantech
|
|
|
|
The ADAM-4000 series is a set of intelligent sensor-to-computer interface analog I/O modules containing a built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol.
The 4000 series provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.
|
|
|

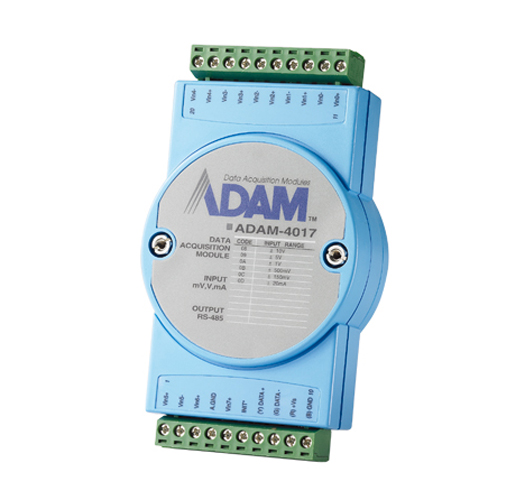

The ADAM-4017 is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs provide 3000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input-line voltages. ADAM-4017 offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The module protects your equipment from ground loops and power surges by providing optoisolation of A/D input and transformer based isolation up to 3000 VDC. The ADAM-4017 uses a 16-bit microprocessor-controlled sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host through a standard RS-485 interface.
- Effective Resolution: 16-bit
- Channels: 6 differential, 2 single-ended
- Input Type: mV, V, mA
- Input Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA
- Isolation Voltage: 3000 VDC
- Fault and Over Voltage Protection: Withstands over voltage up to ±35 V
- Sampling Rate: 10 samples per second (total)
- Input Impedance: 20M ohms
- Bandwidth: 13.1 Hz @ 50 Hz, 15.7 Hz @ 60 Hz
- Accuracy: ±0.1% or better
- Zero Drift: ±6 mV per degree Celsius
- Span Drift: ±25 ppm per degree Celsius
- CMR @ 50/60 Hz: 92 dB min.
- Communication Output: RS-485 (2-wire)
- Baud Rate: 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K
- Data Format: 8 data bits, no parity, 1 stop bit (asynchronous)
- Operating Temperature: 14 to 158°F (-10 to 70°C)
- Storage Temperature: -13 to 185°F (-25 to 85°C)
- Humidity: 0 to 95% (non-condensing)
- Power: Unregulated 10-30 VDC (1.2 watts)
- Compliances: FCC Class A and CE marked
|
|
|
|
