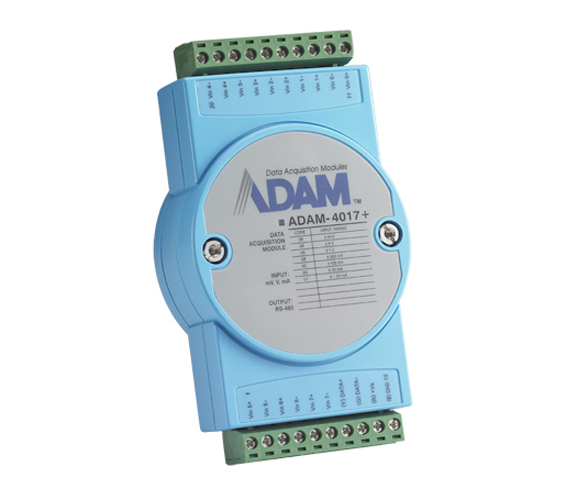

Advantech ADAM-4017+ - "Discontinued" - ANALOG IN MOD 8 CH DIFFERENTIA
by Advantech
|
|
|
|
- 16-bit resolution
- Eight different inputs
- Software configurable for mV, V or mA inputs
- 3000 Vdc isolation
- Supports Modbus/RTU Protocol
- Supports 4~20mA
|
|
|
The ADAM-4017+ is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. These modules are an extremely cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages.
General
- Power Consumption: 1.2 W @ 24 VDC
- Watchdog Timer: System (1.6 second) & Communication
- Supported Protocols: ASCII command and Modbus/RTU
Analog Input
- Channels: 8 differential
- Channel Independent Configuration: Yes
- Input Impedance: Voltage: 20 MΩ Current: 120 Ω
- lnput Type: mV, V, mA
- lnput Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 4 ~ 20 mA
|
|
|
|
