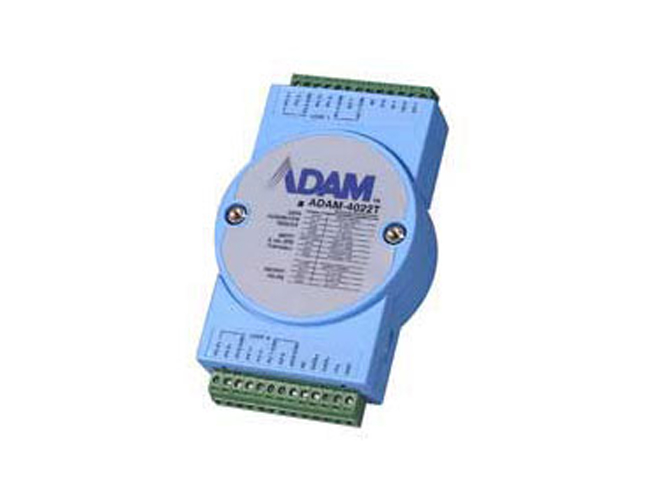

Advantech ADAM-4022T-AE - DUAL LOOP PID CONTROLLER
by Advantech
|
|
|
|
- RS485 communications
- Software Configuration and Calibration
- Watchdog Timer
- nput type: Thermocouple, mV, V or mA
- RTD modules with models supporting Modbus
- Serial Based Dual Loop PID Controller with Modbus
- Isolation voltage: 3000 VDC
- Power input from 10 to 30 VDC
- ADAM Series Utility software
- ADAM Isolated RS-232/RS-485 Converter (optional)
|
|
|
ADAM-4022T-AE The ADAM-4000 series is a set of intelligent sensor-to-computer interface analog I/O modules containing a built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol.The 4000 series provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.Buy and compare our RS-485 I/O modules below. Click on each model number to view a photo and see the Details, Specs, Documentation, and Accessories tabs for further information.
Analog Input
- Channels: 4
- Input Type: mA, V, Thermistor, RTD
- Input Range: 0 to 20 mA, 4 to 20 mA, 0 to 10 V
- Thermistor Type and Temperature Ranges Thermistor; 3K: 0 ~ 100° C Thermistor 10K: 0 ~ 100° C
- RTD Type and Temperature Ranges: Pt 100 RTD Pt -100 ~ 100° C Pt 0 ~ 100° C Pt 0 ~ 200° C Pt 0 ~ 600° C IEC RTD 100 ohms (a = 0.00385) JIS RTD 100 ohms (a = 0.00392) Pt 1000 RTD Pt -40 ~ 160° C
Analog Output
- Channels: 2
- Output Type: mA,V
- Output Range: 0 to 20 mA, 4 to 20 mA, 0 to 10 V
Digital Input
- Channels: 2
- Dry Contact Logic level 0-close to GND Logic level 1-open
Digital Output
- Channels 2 Open Collector to 30 V, 100 mA max. load 3,000 VDC
Surge Protection (Power) Built-in Watchdog Timer
- Power Requirements Unregulated 10 ~ 30 VDC
- Power Consumption 4 W @ 24 VDC
|
|
|
|
