Advantech ADAM-4022T - *Discontinued* - DUAL LOOP PID CONTROLLER
by Advantech
|
|
|
|
- Channels: 4
- Input Type: mA, V, Thermistor, RTD
- Input Range: 0 to 20 mA, 4 to 20 mA, 0 to 10 V
- Watchdog Timer
|
|
|

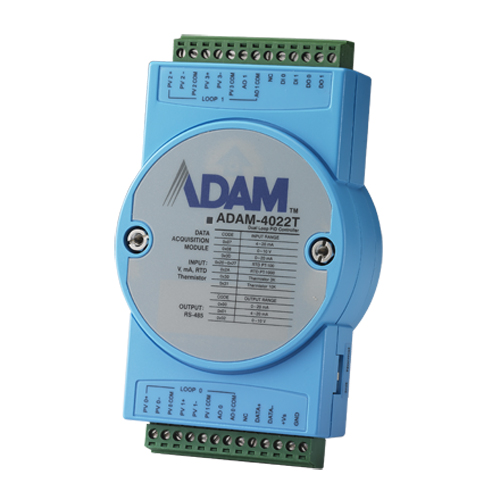

The ADAM-4022T dual loop PID controller is a Serial-based controller. It was designed as the product of Advantech’s ADAM-4000 series with Serial based PID controller. With an excellent accuracy ±0.15%, the ADAM-4022T is an ideal controller for temperature and other processing variable in heating and cooling applications and environmental tests. ADAM-4022T utility software can help you select input and range configurations, set the operating parameter (SP, Sv, Pv ….. etc) for your process control needed. ADAM-4022T utility software also integrates the trend chart to help you monitor and debug your control setting. ADAM-4022T was designed to use in industrial environment. It can be installed on the standard DIN rail inside the cabinet. And it can be powered by unregulated 10~30Vdc to meet the various power supplied source in field. It also withstands ambient temperature up to 60 o C and resists the effects of vibration and mechanical shock.
General
- Connectors: 2 x plug-in terminal blocks (#14 ~ 28 AWG)
- Power Consumption: 4 W @ 24 VDC
- Watchdog Timer: System (1.6 second)
- Supported Protocols: ASCII command and Modbus/RTU
Analog Input (Only AI0 and AI2 are the PID input)
- Channels: 4
- Input Type: mA, V, Thermistor, RTD
- Input Range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V
- Thermistor Type and Temperature Ranges
Thermistor 3 K (NTC): 0 ~ 100°C
Thermistor 10 K (NTC): 0 ~ 100°C
- RTD Type and Temperature Ranges Pt 100 RTD
Pt 0 ~ 100°C Pt -100 ~ 100°C
Pt 0 ~ 600°C Pt 0 ~ 200°C
IEC RTD 100 ohms (a = 0.00385)
JIS RTD 100 ohms (a = 0.00392)
Pt 1000 RTD Pt -40 ~ 160°C
- Resolution: 16-bit
- Sampling Rate: 10 sample/second
- Isolation Voltage: 3,000 VDC
Analog Output
- Channels: 2
- Output Range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V
- Output Type: mA, V
- Resolution: 12-bit
- Isolation Voltage: 3,000 VDC
Digital Input
- Channels: 2
- Dry Contact: Logic level 0-close to GND Logic level 1-open
Digital Output
- Channels: 2 Open Collector to 30 V, 30 mA max. load
- Power Dissipation: 300 mW
|
|
|
|
