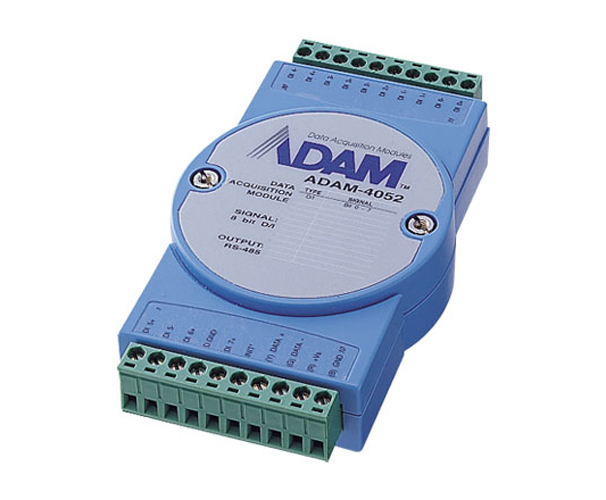

The ADAM-4052 provides eight digital input channels: six fully independent isolated channels and two isolated channels with a common ground. All have 5000 V RMS isolation to prevent ground loop effects and prevent damage from power surges on the input lines.
General
- Connectors: 2 x plug-in terminal blocks (#14 ~ 22 AWG)
- Power Consumption: 0.4 W @ 24 VDC
- Watchdog Timer: System (1.6 second)
- Supported Protocols: ASCII command
Digital Input
- Channels: 8 (6 fully independent isolated channels, 2 isolated channels with common ground)
- Input Level: Logic level 0: 1 V max. Logic level 1: 3 ~ 30 V
- Isolation Voltage: 5,000 VRMS
- Input Resistance: 3 kΩ
