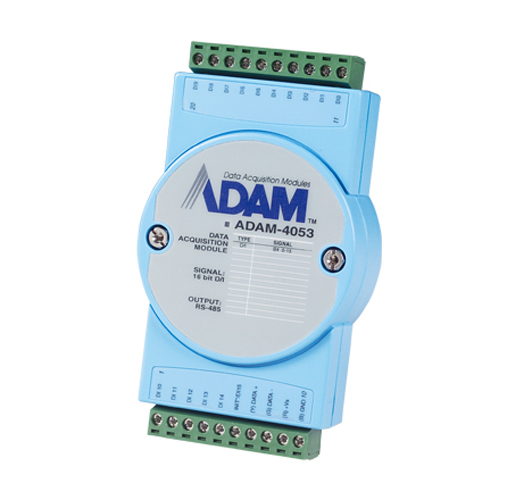

The ADAM-4053 provides 16 digital input channels for dry contact or wet contact signals. For dry contact, effective distance from DI to contact point is up to 500 m.
General
- Connectors: 2 x plug-in terminal blocks (#14 ~ 22 AWG)
- Power Consumption: 1 W @ 24 VDC
- Watchdog Timer: System (1.6 second)
- Supported Protocols: ASCII command
Digital Input
- Channels: 16
- Input Level
- Dry contact: Logic level 0: close to GND Logic level 1: open
- Wet contact: Logic level 0: 2 V max. Logic level 1: 4 ~ 30 V
- Effective Distance: 500 m max. (dry contact only)
