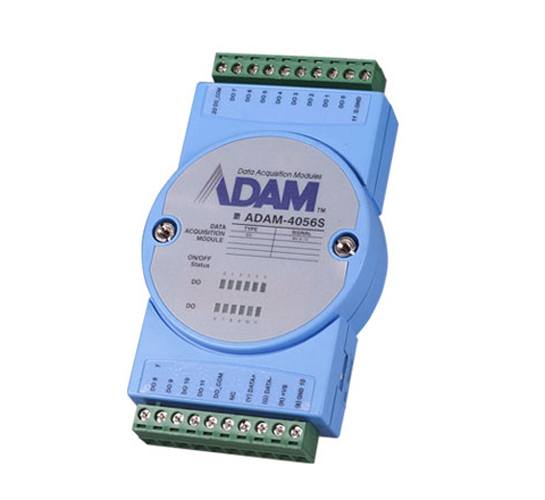

12-ch Sink Type Isolated Digital Output Module with Modbus
General
- Connectors: 2 x Plug-in terminal blocks (#14~22 AWG)
- Watchdog Timer: System (1.6 second) & Communication
- Support Protocol: ASCII command and Modbus/RTU
- Isolation Voltage: 5000 VDC
- LED Indicators: Yes
ADAM-4056S
- Digital Output Channels: 12 Open collector to 40V (200mA max. load)
- Power Dissipation: Channel: 1 W max Total: 4 W (12 Channels)
- Digital Output Type: Sink
