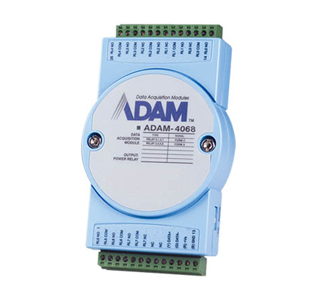

The ADAM-4068 relay module is controlled remotely and store configuration data in EEPROM. The ADAM-4068 provides 4/8 channels, half being Form A and the rest being Form C. These modules are excellent for on/off control or low-power switching applications.
General
- Connectors: 2 x plug-in terminal blocks (#14 ~ 28 AWG)
- Power Consumption: 0.6 W @ 24 VDC
- Watchdog Timer: System (1.6 second) & Communication
- Supported Protocols: ASCII command and Modbus/RTU
Relay Output
- Breakdown Voltage: 500 VAC (50/60 Hz)
- Channels: 4 x Form A 4 x Form C
- Contact Rating (Resistive): 0.5 A @ 120 VAC 0.25 A @ 240 VAC 1 A @ 30 VDC 0.3 A @ 110 VDC
- Initial Insulation: 1 GΩ min. at 500 VDC Resistance
- Relay off Time (Typical): 4 ms
- Relay on Time (Typical): 3 ms
- Maximum Operating Speed: 50 operations/min (at related load)
