Advantech ADAM-4117-AE - 8-CHANNEL ANALOG INPUT, MODBUS, WIDE TEMP
by Advantech
|
|
|
|
- RS485 communications
- Software Configuration and Calibration
- Watchdog Timer
- nput type: Thermocouple, mV, V or mA
- RTD modules with models supporting Modbus
- Serial Based Dual Loop PID Controller with Modbus
- Isolation voltage: 3000 VDC
- Power input from 10 to 30 VDC
- ADAM Series Utility software
- ADAM Isolated RS-232/RS-485 Converter (optional)
|
|
|

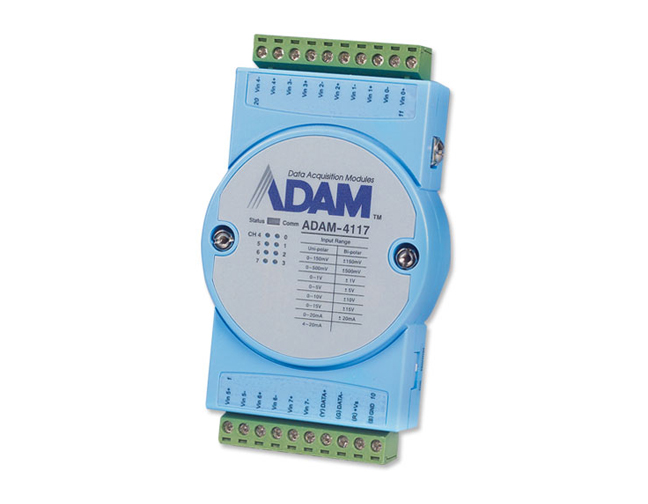

ADAM-4117-AE
The ADAM-4000 series is a set of intelligent sensor-to-computer interface analog I/O modules containing a built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol.
The 4000 series provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.
Buy and compare our RS-485 I/O modules below. Click on each model number to view a photo and see the Details, Specs, Documentation, and Accessories tabs for further information.
General
- Connectors: 2 x Plug-in terminal block (#14 ~ 22 AWG)
- Watchdog Timer: System (1.6 second) & Communication
- Support Protocol: ASCII Command and Modbus/RTU
- Power Consumption: 1.2 W @ 24 VDC
Analog Input
- Channels: 8 differential and independent configuration channels
- Input Impedance Voltage: 20 MΩ Current: 120 Ω
- lnput Type: mV, V (supports uni-polar and bipolar), mA
- lnput Range: 0 ~ 150mV, 0 ~ 500mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V, 0 ~ 15V, ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±15V, ±20 mA, 0 ~ 20 mA, 4 ~ 20mA
- Accuracy Voltage mode : ±0.1% or better Current mode : ±0.2% or better
- Resolution: 16 bits
- Sampling Rate: 10/100 samples/sec (selected by Utility)
- CMR @ 50/60 Hz 92 dB
- NMR @ 50/60 Hz 60 dB
- Over Voltage Protection: ±60 VDC
- High Common Mode: 200 VDC
- Span Drift: ±25 ppm/° C
- Zero Drift: ±6μV/° C
- Built-in TVS/ESD Protection
|
|
|
|
