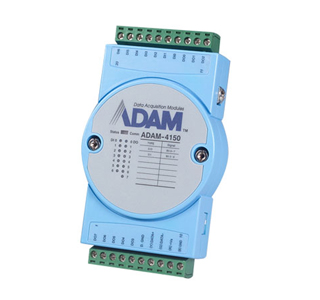

Advantech ADAM-4150 - *Discontinued* - RS-485 15-CHANNEL DIGITAL IO MODULE MODBUS
by Advantech

Wiring is simple using two wires to communicate with their controller or other RS-485 devices. ADAM-4000 modules use the EIA RS-485 communication protocol; the industry's most widely used bi-directional, balanced transmission line suitable for industrial environments.

General

• Power Consumption: 0.7 W @ 24 VDC

Digital Input

• Channels: 7
• Input Level
• Dry contact: Logic level 0: Close to GND Logic level 1: Open
• Wet contact: Logic level 0: 3 V max Logic level 1: 10 ~ 30 V

(Note: The Digital Input Level 0 and 1 status can be inverted)

• Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
• Supports 3 kHz Frequency Input
• Supports Invert DI Status
• Over Voltage Protection: 40 VDC

Digital Output

• Channels: 8, open collector to 40 V (0.8A max. load)
• Power Dissipation: 1W load max
• RON Maximum: 150 mΩ
• Supports 1 kHz Pulse Output
• Supports High-to-Low Delay Output
• Supports Low-to-High Delay Output

ADAM-4150.pdf

324 K
