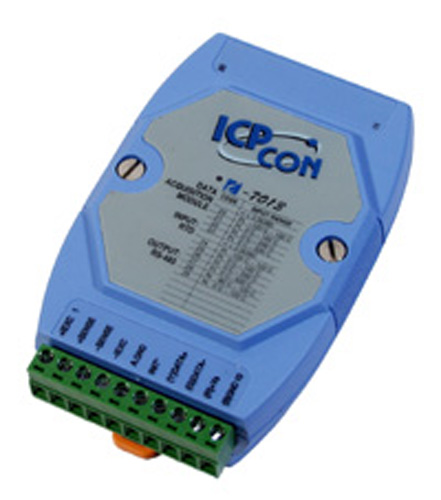

I-7013 - RTD input module
by ICP DAS
|
|
|
|
RTD Input Data Acquisition Module with 1 Analog Channel (RTD input type), communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
|
|
|
I-7013 is a single channel RTD Input Module. I-7013 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7013 modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7013 comes with FREE EZ Data Logger Software.
| Analog Input |
| Input Channels |
1 |
| Input Type |
RTD |
| Wire connection |
2/3/4 wire |
| RTD Type |
Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385 |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/ Second |
| Accuracy |
+/-0.05% |
| -3dB BandWidth |
5.24 Hz |
| Zero drift |
+/-0.5uV/ °C |
| Span drift |
+/-25uV/°C |
| Common Mode Rejection |
150dB min. |
| Normal Mode Rejection |
100dB |
| Open Wire Detection |
Yes |
| Overvoltage Protection |
+/-5V (P-P) |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| Interface |
| Interface |
RS-485 |
| Format |
N, 8, 1 |
| Baud Rate |
1200 ~ 115200bps |
| LED Display |
| 1 LED as Power/ Communication indicator |
| 4 1/2 digits (for I-7013D) |
| Power |
| Input Voltage Range |
+10 to +30 Vdc |
| Power Consumption |
0.7W (I-7013) / 1.3W (I-7013D) |
| Environment |
| Operating temperature |
-25 to 75°C |
| Storage temperature |
-40 to 85°C |
| Humidity |
5 to 95% RH, non-condensing |
| Type Code |
RTD Type |
Temperature Range °C |
| 20 |
Platinum 100, α= 0.00385 |
-100 ~ 100 |
| 21 |
Platinum 100, α= 0.00385 |
0 ~ 100 |
| 22 |
Platinum 100, α= 0.00385 |
0 ~ 200 |
| 23 |
Platinum 100, α= 0.00385 |
0 ~ 600 |
| 24 |
Platinum 100, α= 0.003916 |
-100 ~ 100 |
| 25 |
Platinum 100, α= 0.003916 |
0 ~ 100 |
| 26 |
Platinum 100, α= 0.003916 |
0 ~ 200 |
| 27 |
Platinum 100, α= 0.003916 |
0 ~ 600 |
| 28 |
Nickel 120 |
-80 ~ 100 |
| 29 |
Nickel 120 |
0 ~ 100 |
| 2A |
Platinum 1000, α= 0.00385 |
-200 ~ 600 |
| 2E |
PT 100, α= 0.00385 |
-200°C ~ +200°C |
| 2F |
PT 100, α= 0.003916 |
-200°C ~ +200°C |
| 80 |
PT 100, α= 0.00385 |
-200°C ~ +600°C |
| 81 |
PT 100, α= 0.003916 |
-200°C ~ +600°C |
|
|
