8 Channel Analog Input (Current Input) Data Acquisition Module communicable over RS-485, High Voltage Protection, Current Input Version, and FREE EZ Data Logger Software. Supports operating temperatures between -25&dedg;C ~ +75°C (-13°F +167°F).

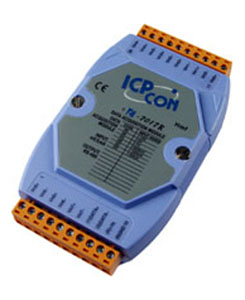

I-7017RC is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test the I-7017RC Analog Input Modules with High Voltage Protection. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7017RC comes with FREE EZ Data Logger Software.
Analog Input
Input Channels
8 differential
Input Type
+/-20mA, 0~20mA, 4~20mA
Resolution
16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate
10 samples/ second (Normal Mode) / 60 sample/ second (Fast Mode)
Accuracy
+/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
