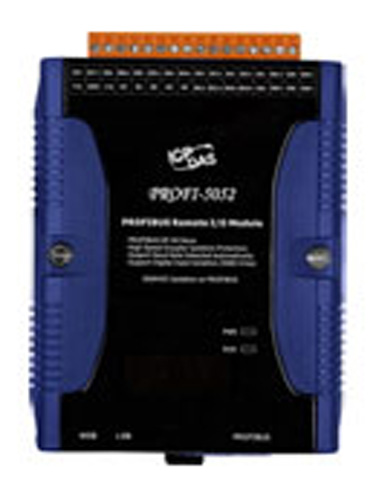

The PROFI-5052 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 12-channel isolated digital input with 5000Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
The PROFI-5052 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5052 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5052, users can easily establish a PROFIBUS DP network with other DP-Masters. In advance, it can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc...
- Support for PROFIBUS DP-V0 protocol
- Detect transmission rate automatically(Max. 12Mbps)
- Address 0~99 set by rotary switches
- Network Isolation Protection
- 3000VDC isolation protection on PROFIBUS side
- 4KV ESD Protection (contact for any terminal)
- Wide range of power input (DC 10~40VDC) and operating temperature (-25°C~+75°C)
| Protocol & Hierarchy |
DP-V0 Slave |
| Supports Transmission Rate (kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
| Transmission Rate Setting |
detected automatically |
| Address Setting |
0~99 set by rotary switches |
| Indicators |
PWR and RUN LEDs |
| I/O modules Configuration |
Configured by GSD file |
| Network Isolation Protection |
High Speed iCoupler |
| DC Isolation Protection |
3000 VDC on PROFIBUS side |
| 4KV ESD Protection |
Contact for each terminal |
| Hardware |
| ESD Protection |
4 kV class A |
| PROFIBUS Interface |
| Controller |
Profichip VPCLS2 |
| Transceiver |
ADI ADM2486 |
| Connector |
9-pin female D-Sub |
| Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| LED |
| Round LED |
PWR LED, RUN LED |
| Power |
| Power supply |
Unregulated +10 ~ +40 VDC |
| Protection |
Reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
1 W |
| I/O |
| Digital Input |
12 Channels (Sink or Source), Isolated from each other.
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Input Impedance: 3KΩ in series with opto-coupler
Isolation Voltage: 5000Vrms |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
91 mm x 128 mm x 52 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75℃ |
| Storage Temp. |
-30 ~ 85℃ |
| Humidity |
5 ~ 95% RH, non-condensing |
|
