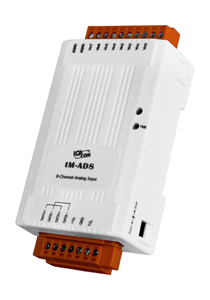

ICP DAS tM-AD8 - 8 Channel Analog Inputs with High Voltage Protection
by ICP DAS
|
|
|
|
8-channel Isolated Analog Voltage Input Module with High Voltage Protection. Communicable over RS-485 and Modbus RTU. Input types include: 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V.
|
|
|
The tM-AD8 is an analog input module that includes 8 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). It provides a high overvoltage protection of 120 VDC. The sampling rate of the tM-AD8 is adjustable and is available in either fast or normal mode and It also provides 4 KV ESD protection as well as 2500 Vrms intra-module isolation.

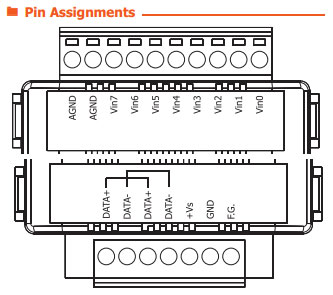

- 8-channel Single-ended Inputs
- Voltage Inputs
- 120 VDC Overvoltage Protection
- Resolution: 14/12 bits
- Adjustable Sampling Rate
- 4 kV ESD and EFT Protecton
- 3 kV Surge Protection
- Dual Watchdog
- 2500 VDC Intra-module Isolation
- Cost-effective
- Wide Operating Temperature Range: -25 °C ~ +75 °C
| Contact Specification |
| Contact Configuration |
2 NO (DPST-NO) |
| Rated Current / Maximum peak Current |
20/30 A |
| Rated Voltage/Maximum Switching Voltage |
250/400 V |
| Rated load in AC1 |
5000 VA |
| Rated load in AC15 (230V AC) |
1000 VA |
| Single phase motor rating (230 V AC) |
- |
| Breaking capacity DC1:30/110/220 V |
10/0.3/0.12 mW(V / mA) |
| Minimum switching load |
1000(10/10) |
| Standard contact material |
AgSn02 |
| Incandescent Nominal Rate Lamps (230V) |
1000 W |
| Compensated Fluorescent Nominal Rate Lamps(230V) |
360 W |
| Coil Specification |
| Nominal voltage (UN) |
24 VDC |
| Rated DC power DC |
1.25 |
| Operating range |
21.6-26.4 VDC |
| DC Version Data |
| Nominal Voltage |
24 |
| Coil Code |
9.024 |
| Operating Range |
21.6 - 26.4 |
| Resistance |
460 |
| Consumption I at UN |
52.2 |
| Technical Data |
| Mechanical life |
|
| Electrical life at rated load in AC1 |
|
| Operate/release time |
15/8 ms |
| Maximum impulse duration |
continuous |
| Insulation between coil and contacts (1.2/50 μs) kV |
4 |
| Ambient temperature range |
-40 ~ 40C |
| Protection category |
IP20 |
| Insulation & Dielectric Strength |
| Between Supply and Contacts |
3500 VAC |
| Between Open Contacts |
2000 VAC |
| Between Adjacent Contacts |
2000 VAC |
| Other Data |
| Bounce Time: NO / NC |
5 / 10 ms |
| Power loss to environment without contact current |
1.2 W |
| Power loss to environment with rated current |
5.2 |
| Screw Torque |
.08 |
| Max Wire Size |
Contact Terminals |
| Solid Cable |
Stranded Cable |
| 1 x 6 / 2 x 6 |
1 x 6 / x 2 4 |
| 1 x 10 / 2 x 10 |
1 x 102 x 12 |
If the coil is operated for a prolonged period of time, adaquate ventilation of the relays must be provided - suggested gap of 9 mm between adjacent relays.
|
|
|
|
