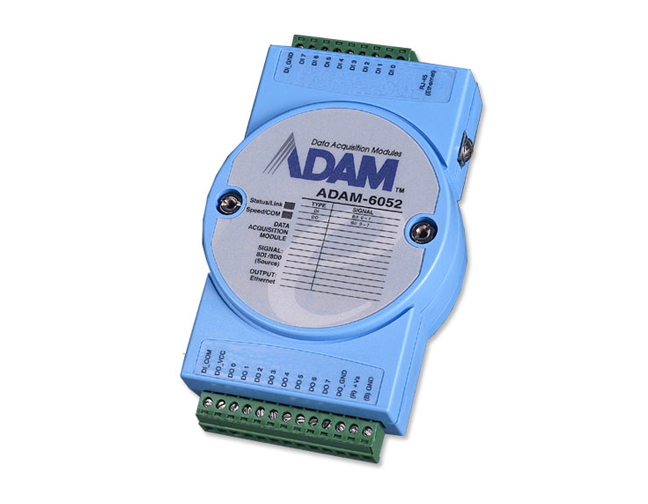

Advantech ADAM-6052-CE - Discontinued - 16-CHANNEL ST DIGITAL I/O MOD
by Advantech

ADAM-6052-CE

The ADAM-6000 Ethernet-enabled data acquisition and control module works as an Ethernet I/O data processing center. This product is not only a standard I/O, but also an intelligent system designed with local control functions and a MODBUS/TCP protocol.

Buy and compare our Ethernet I/O modules below. Click on each model number to view a photo and see the Details, Specs, Documentation, and Accessories tabs for further information.

General

• Power Consumption: 2 W @ 24 VDC
• Watchdog Timer: Yes, programmable (comm.)

Digital Input

• Channels: 8
• Dry Contact: Logic level 0: close to GND Logic level 1: open
• Wet Contact: Logic level 0 : +3 V max Logic level 1 : +10 V to 30 VDC

Digital Output

• Channels: 8
• Vdc: 35 V (Source Type)
• Current: 1 A
