WSKIT3BE-NRG - Wzzard Energy Monitor Application Bundle

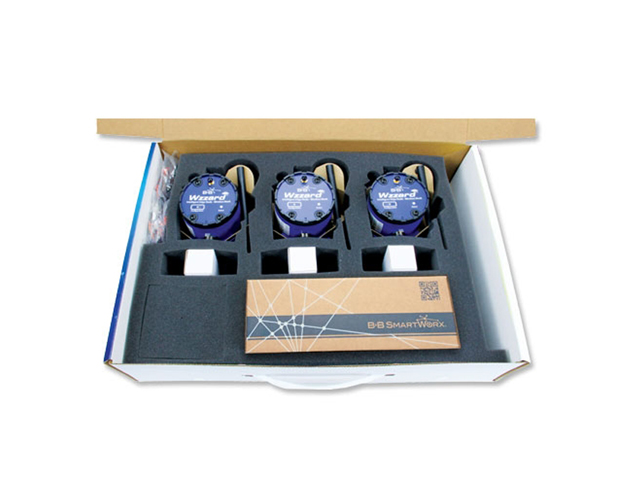

Advantech WSKIT3BE-NRG - Wzzard Energy Monitor Application Bundle, 3 Node, Ethernet Network Gateway
by Advantech

Lower Energy Costs Through Data-driven Process Optimization
Today’s leading manufacturers and facilities managers have energy reduction programs in place to reduce input costs and improve their environmental footprint. But often they’re managing those programs with nothing more than a monthly utility bill and no insight into energy use or trends of their individual equipment, processes or circuits.
Installing individual energy meters into existing equipment provides tremendous data but carries a high cost of installation and is disruptive to ongoing operations.
The Wzzard Energy Monitoring Starter Kit provides a non-intrusive, easily installed solution for monitoring current consumption of your equipment, processes or panels without disrupting your existing operations.

Includes everything you need to monitor current consumption of up to three inputs; one three phase load or three unique loads
No equipment downtime, simply snap on the current clamps connected to the wireless Wzzard node and provide an Ethernet connection to the gateway
Built in dashboard, data trendlines, email/SMS alerts and datalogging capability
Easily expand the Starter Kit system by adding additional Wzzard nodes and sensors to your existing gateway
Quickly deploy proof-of-concept and pilot projects in minutes, not weeks. Then scale to hundreds, or thousands, of inputs from one location or multiple locations.

Description
Specification
Datasheet

What is Wzzard?
The Wzzard platform uses wireless Wzzard Intelligent Edge Nodes and the Spectre Network Gateway work together to create a wireless sensor network.

The wireless Wzzard Intelligent Edge Nodes connect to your sensors and send the data to the gateway via wireless mesh networks.
The edge nodes convert your sensor data to the publish/subscribe MQTT format, making it available to multiple applications on your network or in the cloud.
The nodes can be configured to report only the data that has exceeded preconfigured thresholds, greatly reducing network traffic.
The Spectre Network Gateway aggregates the data from the Wzzard mesh networks and securely sends it to your dashboard.

Included Hardware

(3) Wzzard™ WSD2CA3 Industrial (-40c to +85c). WSD2CJA (2 Thermocouple in, 2 AI). Each node supports up to 3 attached sensors.
(1) ERT351 Ethernet network gateway with Dust board. (One gateway supports up to 32 wireless sensor nodes and up to 96 attached sensors).
(6) J Type Thermocouples. (JWT0 10 0GT 06 S0 -- Therm X )
(3) 250A Clamp On Current Sensors. (JC24S250-V -- J&D)
(3) Vibration 4-20 ma sensors. (LP252-2R2-1D -- Sun Infrared)
(3) Vibration cables. (CB111-A2R-010-Z -- Sun Infrared)
(3) 250 ohm resistors. (1/4W). (Digikey part 1135-1559-MIL)
