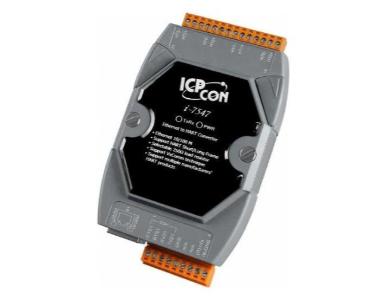

ICP DAS I-7547 - Ethernet To HART Converter. Supports operating temperatures from -25C ~ +75C. Allow users to access HART dev
by ICP DAS
|
|
|
|
I-7547_SUMMARY.html
- Relatively easy to understand and use, the HART protocol provides access to the wealth of additional information (variables, diagnostics, calibration, etc.)
- HART is a no risk solution for enhanced field communication
- Compatibility with standard 4-20mA wiring
- Simultaneous transmission of digital data
- Risk reduction through a highly accurate and robust protocol
- Increase Plant Availability
- Reduce Maintenance Costs
- Improve regulatory compliance
|
|
|
I-7547_DESCRIPTION.html

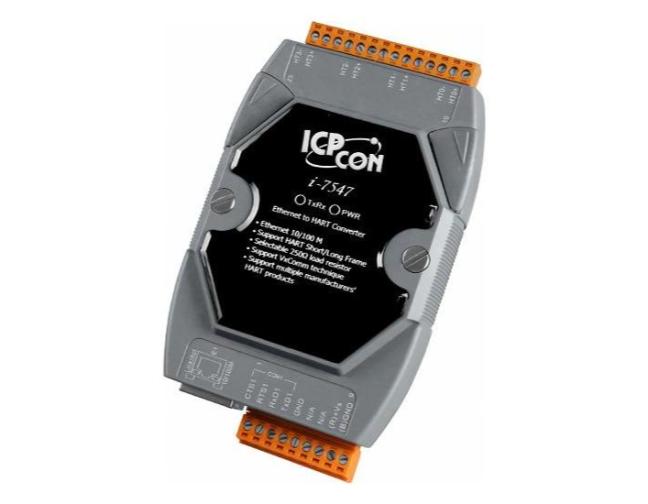

The GW-7547 (formerly I-7547 ) is an Ethernet to HART converter specially designed as the master device of HART protocol. When connecting GW-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying GW-7547. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.
I-7547.html
| Ethernet Interface | | Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X | | Virtual COM | Yes (VxComm Utility) | | Built-In Web Server | Yes | | HART Interface | | Channel | 4 | | Connector | 2-pin screwed terminal block for each HART port | | Terminator Resistor | Selectable 250 O terminal resistor for each HART port | | 4KV ESD Protection | Yes, Contact for each terminal | | Isolation Voltage | 500 VDC | | LED | | LED Display | PWR : Power Indicator
TxRx : Data Received from Ethernet / HART Indicator | | Power | | Power supply | Unregulated +10 ~ +30 VDC | | Protection | Power reverse polarity protection, Over-voltage brown-out protection | | Power Consumption | Maximum : 1.5W | | Mechanism | | Installation | DIN-Rail or Wall Mounting | | Dimensions | 123 mm x 72 mm x 35 mm (H x W x D) | | Environment | | Operating Temp. | -25 ? ~ +75 ? (-13 to 167?) | | Storage Temp. | -30 ? ~ +80 ? (-22 to 176?) | | Humidity | 5% ~ 95% RH, non-condensing |
|
|
|
|
