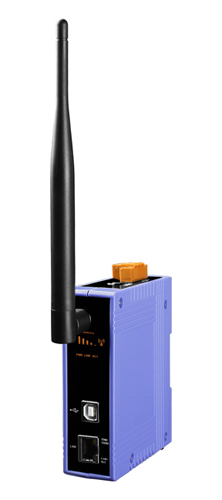

The WF-2571 is an Industrial Ethernet to Wi-Fi Bridge that creates a connection between an 802.11b/g wireless LAN and a device with a standard Ethernet port. The Bridge transparently conveys data between devices with a 10/100 Ethernet interface and a wireless LAN without drivers or complicated addressing schemes. This significantly reduces the complexity of network connectivity and wireless system deployment and also provides wireless LAN and Internet connectivity to industrial, scientific and automotive applications.
- Compatible with IEEE 802.11b/g standards
- Supports both Infrastructure and Ad-hoc mode
- Enterprise Class wireless security (WEP, WPA and WPA2)
- Plug-and-Play Ethernet to Wi-Fi connectivity
- USB-based configuration
- No driver installation required
- Built-in Watchdog
- Extended operating temperature range (-25°C ~ +75°C)
| Wi-Fi Interface |
| Antenna |
5 dBi (Omni-Directional) |
| Standard Supported |
IEEE 802.11b/g |
| Network Access Mode |
Infrastructure & Ad-hoc |
| Encryption |
WEP, WPA and WPA2 |
| Transmission Range |
100 meters (LOS) |
| Ethernet Interface |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 with LED indicator |
| USB Interface |
| Type |
USB 2.0 Full-Speed |
| Connector |
USB type B |
| LED Indicators |
| System status |
3 Indicator LEDs (PWR, LINK, COMM) |
| Signal strength |
3 Indicator LEDs (High, Mid, Low) |
| Power |
| Input Voltage Range |
10V ~ 30V |
| Power Consumption |
1.6W |
| Mechanical |
| Installation |
DIN-Rail |
| Dimensions |
110mm x 90mm x 33mm (H x W x D) |
| Environmental |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
10 ~ 90% |
|
