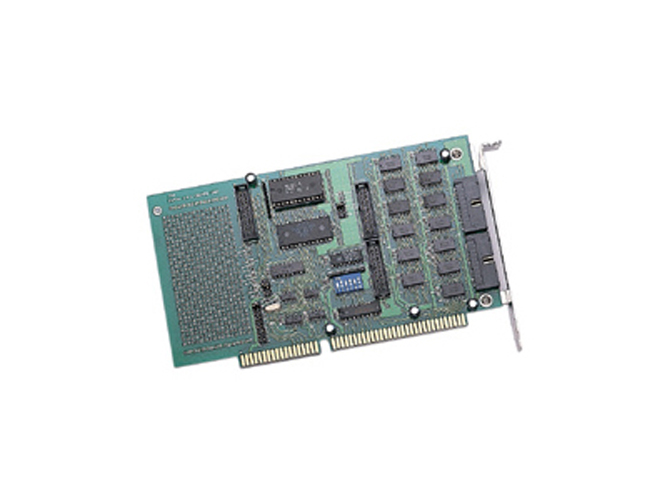

ADLINK ACL-7120A/6 is a 32-CH TTL compatible Digital Input/Output and
timers/counters card for PC/AT and compatibles. The device has 32 TTL compatible
digital inputs, 32 digital outputs, and 5 channels with a 16-bit timer/counter.
The blank breadboard area is provided for user??s circuit designs. ACL-7120A/6
device supports one 32-bit timer pacer which can generate interrupt
periodically, as well as an event counter for external event counting. ADLINK
ACL-7120A/6 delivers cost-effective features and is ideal for a broad variety of
applications.
General Specification:
- Dimensions: 193.5 mm x 114 mm
- Bus: PC-AT bus
- I/O port address: Hex 200 - Hex 3FF
- Interrupt IRQ Level: IRQ3 - IRQ15
Digital Input:
- Input logic low voltage: Min. -0.5V, Max. 0.8V
- Input logic high voltage: Min. 2.0V, Max. 5.0V
- Input loading current: Max. 0.2 mA at 0.4V
- Input hysteresis: Typical 0.4V, Min. 0.2V
Digital Output:
- Output logic low voltage (Sink): Max. 0.5V at 24mA
- Output logic high voltage (Source): Min. 2V at –15mA
- Driving Capacity: All inputs and outputs are TTL/DTL compatible.
Outputs will drive 1 standard TTL load (74 series) or 4 LSTTL (74LS) loads
- Input hysteresis: Typical 0.4V, Min. 0.2V
Programmable Counter:
- Frequency: 4MHz
- Counter: 4
- Mode: 6 programmable modes
- Usable pins: CLK and GATE for counter 0 - counter 3
- Counter usage :
- Counters 0 - 2 are customizable
- Counter 3 is used as the event counting interrupt source or is user
defined
- Counters 4 and 5 are cascaded for timer pacer generation
Breadboard Area: plated through hole:
hole size: 1.0 mm
pad size: 1.5 mm
Operating temperature: 0 to 60°C
Storage Temperature: -20° C to 80° C
Humidity: 5 to 90%, non-condensing
