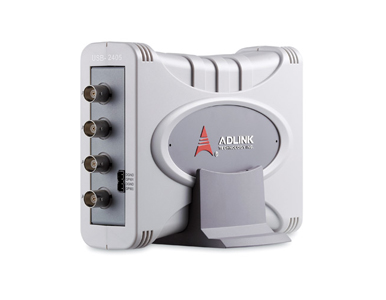

USB-2405 - 4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 module by ADLINK

USB-2405 - 4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 module
by ADLINK

Write a review Write a review
  • Hi-Speed USB 2.0, and USB bus powered
  • 24-bit Sigma-Delta ADC with built-in anti-aliasing filter
  • 4-CH simultaneous sampling analog input, up to 128kS/s
  • AC or DC input coupling, software selectable
  • Analog or digital triggering
  • Supports 2mA excitation output on each analog input channel for IEPE sensor measurement
  • Full auto-calibration
  • Supporting Time-Frequency analysis software -Visual Signal
Mfg SKU # : USB-2405
Our Price : $2,598.00
Stock :Call for Availability
Quantity :

The USB-2405 is a 24-bit high-performance dynamic signal acquisition USB module equipped with 4 analog input channels providing simultaneous-sampling at up to 128 kS/s per channel. The USB-2405 also features software selectable AC or DC coupling input configuration and built-in high precision 2 mA excitation current to measure integrated electronic piezoelectric (IEPE) sensors such as accelerometers and microphones.

The USB-2405 delivers high precision, DC and dynamic measurement performance with very low temperature drift. The onboard 24-bit Sigma-Delta ADC supports anti-aliasing filtering, suppressing modulator and signal out-of-band noise and providing usable signal bandwidth of the Nyquist rate, making it ideal for high dynamic range signal measurement in vibration and acoustic applications.

The USB-2405 supports digital and analog trigger sources and flexible trigger modes, including post, delay, middle, gated, and pre-triggering for efficient data acquisition with no need for post-processing. The USB-2405 is USB bus powered and equipped with BNC connectors and removable spring terminals for easy device connectivity.

  • OS Information
  • Windows XP, Windows 7/8 x64/x86
  • Software Compatibility
    LabVIEWTM
  • MATLABĀ®
  • Visual Studio.NET
  • Software Recommendations
  • U-Test
  • Visual Signal DAQ Express
  •
