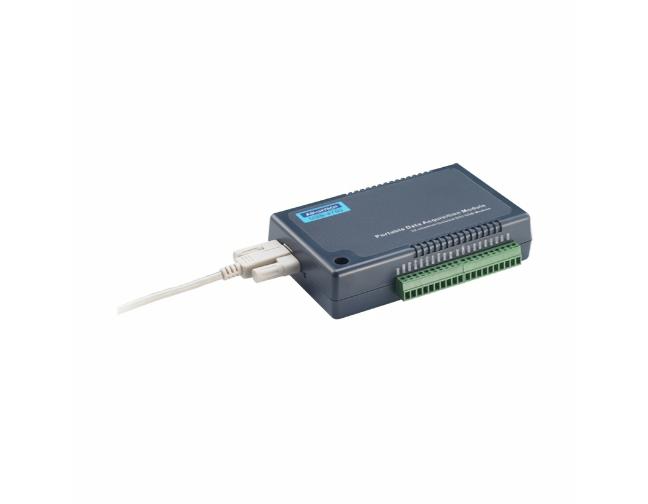

Advantech USB-4761-CE - 8ch Relay & 8ch Isolated DI USB Module
by Advantech
|
|
|
|
USB-4761-CE_SUMMARY.html
-
Portable; Compatible with 1.1/2.0
-
Bus-powered
-
8 relay output channels and 8 isolated digital input channels; 8 Form C type relay output channels
-
LED indicators to show activated relays
-
High-voltage isolation on input channels (2,500 VDC)
-
High ESD protection (2,000 VDC); Wide input range (5 ~ 30 VDC)
-
Interrupt handling capability
-
Suitable for DIN-rail mounting; Detachable screw terminal on modules
-
One lockable USB cable for secure connection included
|
|
|
USB-4761-CE_DESCRIPTION.html
USB-4761-CE - 8ch Relay & 8ch Isolated DI USB Module
USB-4761-CE.html
| Category |
Attribute |
Value |
| General |
Programming Language |
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Digital Input |
Channels |
8 (Isolated) |
| Isolation Protection |
2,500 VDC |
| Relay Output |
Channels |
8 Form C |
| Contact Rating (Resistive) |
1 A @ 30 VDC, 0.3 A @ 110 VAC, 0.5 A @ 120 VAC, 0.25 A @ 240 VAC |
|
|
|
|
