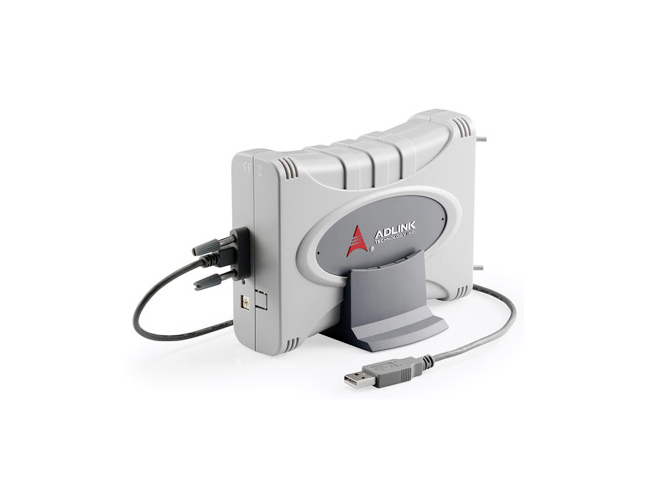

Adlink USB-7230 - 16-CH isolated DI & 16-CH isolated DO USB module
by ADLINK
|
|
|
|
- USB 2.0, USB bus powered
- Programmable digital filter removes unexpected glitches from input channels
- Programmable DO/Relay initial status
- 32-CH isolated digital I/O (USB-7230)
- 8-CH solid-state relay output, 8-CH isolated DI (USB-7250)
- 2-CH frequency/event counters (USB-7230/7250)
- Up to 2500 VRMS isolation voltage
- Ready-to-use testing application (U-Test) provided
|
|
|
The USB-7230/7250 USB-based digital I/O modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS. The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters. The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters.
The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.
The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection. High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops. U-Test, a free ready-to-use testing program, is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.
| OS Information |
| Windows 7/Vista/XP |
| Software Compatibility |
| LabVIEWTM |
| MATLAB® |
| Visual Studio, Visual Studio.NET |
| Software Recommendations |
| U-Test
DAQMaster |
|
|
|
|
