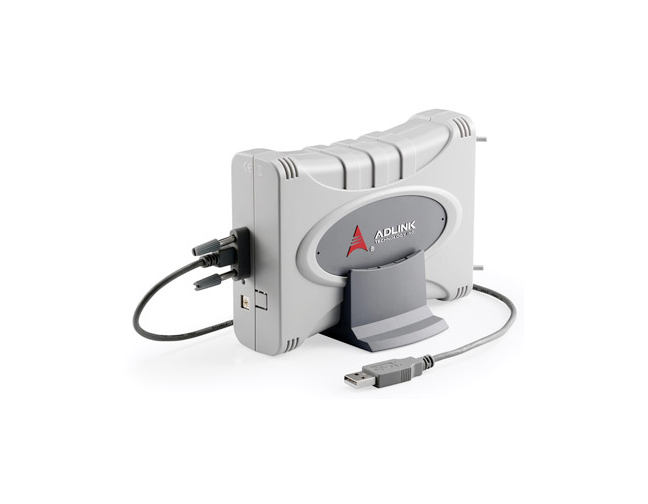

USB-7250 - 8-CH isolated DI & 8-CH relay output USB DIO by ADLINK

USB-7250 - 8-CH isolated DI & 8-CH relay output USB DIO
by ADLINK

Write a review Write a review
  • USB 2.0, USB bus powered
  • Programmable digital filter removes unexpected glitches from input channels
  • Programmable DO/Relay initial status
  • 32-CH isolated digital I/O (USB-7230)
  • 8-CH solid-state relay output, 8-CH isolated DI (USB-7250)
  • 2-CH frequency/event counters (USB-7230/7250)
  • Up to 2500 VRMS isolation voltage
  • Ready-to-use testing application (U-Test) provided
Mfg SKU # : USB-7250
Our Price : $415.00
Stock :Call for Availability
Quantity :
The USB-7230/7250 USB-based digital I/O modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS. The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters. The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters.

The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.

The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection. High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops. U-Test, a free ready-to-use testing program, is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.

OS Information
  • Windows 7/Vista/XP
  • Software Compatibility
  • LabVIEWTM
  • MATLABĀ®
  • Visual Studio, Visual Studio.NET
  • Software Recommendations
  • U-Test
  • DAQMaster
  •
