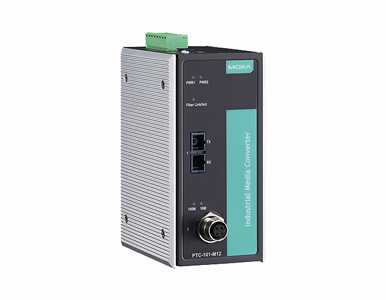

PTC-101-M12-S-SC-LV-T - Industrial Media Converter, M12 connector, single mode, SC connector, 20-72 VDC, -40 to 85 Degree C
by MOXA

The PTC-101-M12-S-SC-LV-T, Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Ethernet Interface

• 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

  1

• 100BaseFX Ports (single-mode SC connector)

  PTC-101-M12-S-SC Series: 1

• Magnetic Isolation Protection

  1.5 kV (built-in)

• Optical Fiber

Power Parameters

• Input Current

  150 mA @ 20 to 72 VDC

• Input Voltage

  20 to 72 VDC

• Overload Current Protection

  Supported

• Power Consumption

  150 mA @ 20 to 72 VDC

Physical Characteristics

• Housing

  Metal

• Dimensions

  152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)

• Weight

  Packaged: 875 g (1.92 lb)
  Product only: 690 g (1.52 lb)

• Installation

  DIN-rail mounting

• Protection

  -CT models: PCB conformal coating

Environmental Limits

• Operating Temperature

  -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11 DIPs

• Environmental Testing

  IEC 60068-2-1
  IEC 60068-2-14
  IEC 60068-2-2
  IEC 60068-2-3

• Safety

  EN 60950-1, UL 60950-1

• Vibration

  IEC 60068-2-6

MTBF

• Time

  1,211,613 hrs

• Standards

  MIL-HDBK-217F

PTC-101-M12-S-SC-LV-T.pdf

864 K
