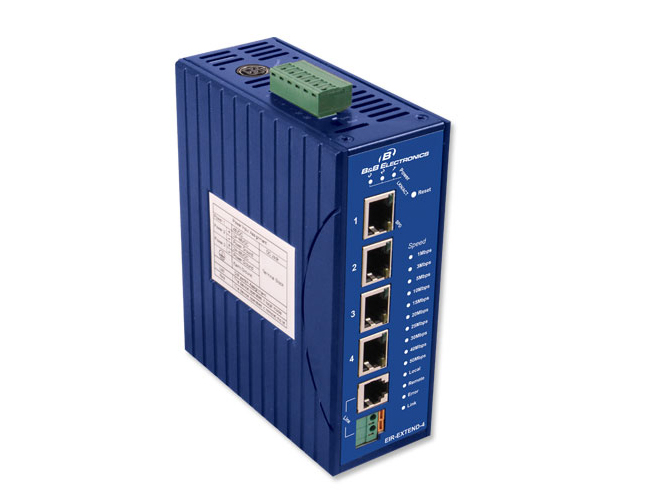

Advantech EIR-EXTEND-4 - *Discontinued* - Please call for alternative.
by Advantech

The EIR-EXTEND is a point-to-point Ethernet Extender designed to operate in harsh environments. Functioning at temperatures from -40 to 75º C, it has been tested for functional operation up to 85º C. Using existing copper wire runs, it allows the extension of Ethernet signals. The EIR-EXTEND is the perfect solution for installing Ethernet connectivity on the factory floor. Used in pairs, configuration is easy. Configure one unit as the local device, and the other one as the remote device. External power supplies are required (not included).

• Extender Interface: RJ-11 or Terminal Block
• Ethernet Interface: one 10/100BaseTX port with RJ-45 connector
• Power: Redundant 12 – 30 VDC Terminal Block, 12 VDC – Power Jack (Power Supply Optional)
• Operating Temp: -40º to 75º C (Tested to 85º C)
• Enclosure: DIN Mount IP30 Aluminum

• UL508 and NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
• IEC61000-6-2 EMC for Heavy Industrial environment
• Extender Interface: RJ-11 or Terminal Block
• Ethernet Interface: four 10/100BaseTX port with RJ-45 connector
• Power: Redundant 24 – 48 VDC Terminal Block, 48 VDC – Power Jack (Power Supply Optional)
• Operating Temp: -40º to 75º C (Tested to 85º C)
• Enclosure: DIN Mount IP30 Aluminum

Distances Up To
Speed	EIR-EXTEND
1 Mbps	6200 ft. (1900 m)
10 Mbps	4500 ft. (1400 m)
20 Mbps	3200 ft. (1000 m)
30 Mbps	2550 ft. (700 m)
50 Mbps	980 ft. (300 m)
