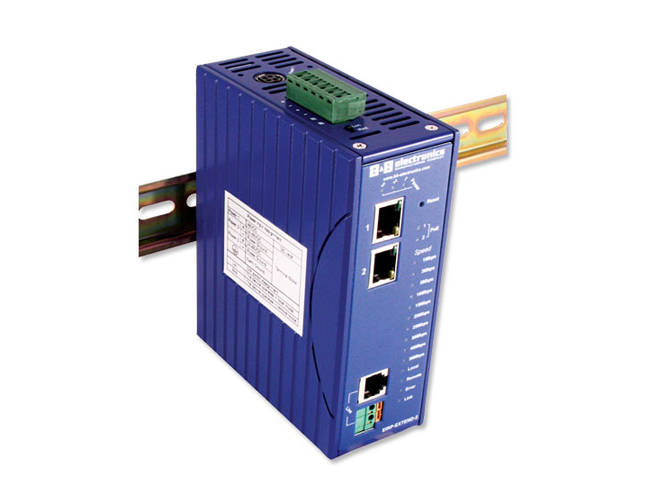

Advantech EIRP-EXTEND - Discontinued - Please call for alternative.
by Advantech

Extend Ethernet up to 6232 ft. (1.9 km) over existing copper wires
IEEE802.3at 30W PoE/PSE power for last mile applications
Complies with UL508 and NEMA TS1/ TS2 environmental requirements for traffic control equipment
Complies with IEC61000-6-2 EMC generic standard immunity for heavy industrial environment
Redundant 24 or 48 VDC power inputs
Wide operating temperature
Ethernet port: PoE Plus (25W) RJ-45 10/100Mbps Full/Half-duplex, Auto-negotiate/Auto-MDI/MDX
Ethernet extender port: 1 RJ-11 50Mbps full duplex VDSL
Port compatible with EIS-EXTEND, EIR-EXTEND-x, EIRM-EXTEND-x

Description
Specification
Datasheet

Extending Ethernet to reach IP cameras, IP phones, and Ethernet connected control devices is simple and reliable with B&B Electronics’ Ethernet Extenders. The EIRP series extenders offer built-in PoE+ technology which allows the end device, such as an IP camera, to be powered directly from the extended Ethernet port. Used with a second extender the configuration is easy. Configure one unit as the local device, and the other one as the remote device. External power supplies are required (not included).

Extending Ethernet to reach IP cameras, IP phones, and Ethernet connected control devices is simple and reliable with B&B Electronics’ PoE Ethernet extenders.

Low cost and ease of use are two great benefits, since the Ethernet signal is extended over existing copper wire (typically telephone wire or Cat5 cable). Enjoy high-speed Ethernet connections ranging from 1Mbps to 50Mbps (depending on the application’s distance requirements). A maximum distance of 1,900 meters can be achieved with these extender devices – that’s 19 times greater than the distance of a standard Ethernet port!

Features/Benefits

Operates transparently to higher layer protocols
EIRP models are equipped with PoE+ ports capable of powering cameras and other PoE devices
Ruggedized for extreme applications
Easy setup via a single DIP switch (Local or Remote) setting
Status LED’s for monitoring and connection status
Meets heavy industrial EN61000-6-2 EMC standards
IEC600068-2-27 (shock) and 600068-2-6 (vibration) tested
Meets NEMA TS1/TS2 requirements for traffic control equipment
Wide operating temperature -40 to 75°C, (tested at -40 to 85°C)
Redundant wide voltage inputs 24 to 48VDC, via terminal block
DIN rail mount or panel mount with optional adapter (Model EIRPMKT)\

Extender port compatible with EIS-Extend, EIR-Extend-x, EIRM-Extend-x

Distance Up To
Speed	EIR-EXTEND
1 Mbps	6200 ft. (1900 m)
10 Mbps	4500 ft. (1400 m)
20 Mbps	3200 ft. (1000 m)
30 Mbps	2550 ft. (700 m)
50 Mbps	980 ft. (300 m)
