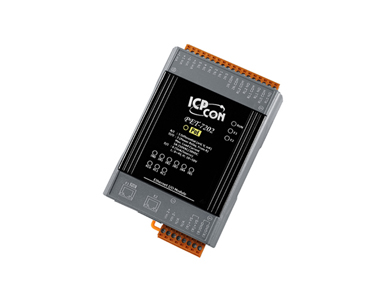

ICP DAS PET-7202 - 3 Channel AI, 6 Channel DI, and 3 Channel Relay
by ICP DAS
|
|
|
|
Modbus TCP based PoE Ethernet I/O module with 2 Ethernet ports, 3-channel Analog Input, 6-channel Digital Input/Counter, and 3-channel Relay Output. Supports Current Input and Voltage Input types: +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (jumper selectable). Supports Modbus TCP and Modbus UDP Protocols. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F). Can be daisy-chained and din rail mounted.
|
|
|
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection
- Built-in I/O
- AI: 3 Channels with 240 Vrms Overvoltage Protection
- DI/Counter: 6 Channels
- Power Relay: 3 Channels
The /PET-7202 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. The PET-7202 is fully RoHScompliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
Yes |
| Protocol |
Modbus/TCP, Modbus/UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 second), Communication Programmable over DCON |
| LED Indicators |
| L1 (System Running) |
Yes |
| L2 (Ethernet Link/Act) |
Yes |
| DI/DO Status |
Yes |
| PoE Power |
Yes |
| 2 Way Isolation |
| Ethernet |
- |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
+/-4 kV for Power |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Powered from PoE |
Yes, IEEE 802.3af, Class1 |
| Consumption |
4.1 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
76 mm x 120 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30 C ~ +80 C (-22°F ` +176°f) |
| Humidity |
10 ~ 90% RH, non-condensing |
I/O Specifications
| Analog Input |
| Channels |
3 (Differential) |
| Type |
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (jumper selectable) |
| Individual Channel Configuration |
Yes |
| Resolution |
16-bit |
| Sample Rate |
Normal Mode |
10 Samples/Second (Total) |
| Fast Mode |
50 Samples/Second (Total) |
| Accuracy |
Normal Mode |
+/-0.1% |
| Fast Mode |
+/-0.5% or better |
| Zero Drift |
+/-20 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Overvoltage Protection |
240 Vrmse |
| Overcurrent Protection |
50 mA max. at 110 VDC/VAC max. |
| Input Impedence |
Voltage |
2 MΩ |
| Current |
125 Ω |
| Common Mode Rejection |
86 dB Min. |
| Normal Mode Rejection |
100 dB |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Virtual Channel to Channel Isolation |
+/-400 VDC |
| Digital Input/Counter |
| Chanels |
6 |
| Contact |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| On Voltage Level |
+10 VDC ~ +50 VDC |
| Off Voltage |
+4 VDC Max. |
| Input Impedence |
10 KΩ, 0.5W |
| Counters |
Channels |
6 |
| Max. Count |
4,294,967,285 (32 bits) |
| Max. Input Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Overvoltage Protection |
+70 VDC |
| Power Relay |
| Channels |
3 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Operating Voltage Range |
250 VAC/30 VDC |
| Max. Load Current |
5.0A/channel at 25°C |
| Operate Time |
6 ms (Typical) |
| Release Time |
3 ms (Typical) |
| Electrical Life (Resistive load) |
VDE: |
5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C. |
| 5 A @ 24 VDC 70,000 ops (10 ops/minute) at 75°C. |
| UL: |
5 A @ 250 VAC/24 VDC 6,000 ops. |
| 3 A @ 250 VAC/24 VDC 100,000 ops. |
| Mechanical Life |
20,000,000 ops. at no load (300 ops./minute). |
| Intra-module Isolation, Field to Logic |
3750 VDC |
| Power-on- Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
|
|
|
