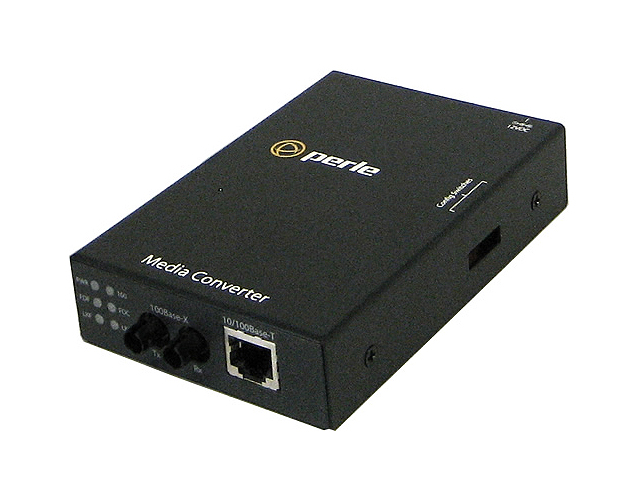

| Power |
| Input Supply Voltage |
6 - 30 vDC, unregulated ( 12 vDC Nominal ) |
| Current |
175 mA |
| Power Consumption |
2.1 watts |
| Power Connector |
2-pin fixed terminal block |
| Indicators |
| Power / TST |
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode. |
| Fiber link on / Receive activity (LKF) |
This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received. |
| Copper link on / Receive activity (LKC) |
This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received. |
| Fiber Duplex (FDF) |
This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex. |
| Copper Duplex (FDC) |
This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex. |
| 10/100 Speed |
This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS |
| Switches - accessible through a side opening in the chassis |
| Auto-Negotiation (802.3u) |
Enabled (Default) - The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex.
Disabled - The media converter sets the port according to the position of the speed and duplex switches. |
| Link Pass Through |
Enabled (Default) - When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter.
When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on.
Disabled - The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface. |
| Far-End Fault (FEF) |
Enabled (Default) - The media converter transmits the Far-End Fault Indication over the 100Base-X fiber connection whenever a receive failure is detected on the 100Base-X fiber connection. The media converter continuously monitors the100Base-X fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.
Disabled - Far-End Fault Indications are not transmitted regardless of the condition of the receive signal on the 100Base-FX fiber connection. |
| Remote Loopback |
The media converter can perform a loopback on the 100Base-X fiber interface.
Disabled (Default - Up)
Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
|
Auto-MDIX
(Internal Strap) |
If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate.
Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.
Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting. |
| Speed Copper |
100 (Default)
10 |
| Duplex Copper |
Full (Default)
Half |
| Duplex Fiber |
Full (Default)
Half |
| Connectors |
| 100Base-TX |
Single mode dual ST Media Converters
RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable |
| Magnetic Isolation |
1.5kv |
| Filtering |
| Filtering |
1024 MAC Addresses |
| Frame Specifications |
| Buffer |
512 Kbits frame buffer memory |
| Size |
Maximum frame size of 2048 bytes |
| Environmental Specifications |
| Operating Temperature |
-40 C to 75 C (-40 F to 167 F) |
| Storage Temperature |
-40 C to 85 C (-40 F to 185 F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
7.2 |
| MTBF (Hours)* |
607,001 |
| Mounting |
| Din Rail Kit |
Optional |
| Rack Mount Kit |
Optional |
| Product Weight and Dimensions |
| Weight |
0.3 kg, 0.66 lbs |
| Dimentions |
120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches |
| Packaging |
| Shipping Weight |
0.425 kg, .9 lbs |
| Shipping Dimentions |
150 x 210 x 40 mm, 5.9 x 11 x 2.8 inches |
| Regulatory Approvals |
| Emissions |
FCC Part 15 Class B, EN55022 Class B |
| CISPR 22 Class B |
| EN61000-3-2 |
| Immunity |
EN55024 |
| Electrical Safety |
UL 60950-1 |
| EN60950 |
| CE |
| Laser Safety |
EN 60825-1:2007 |
| Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991A |
| HTSUS Number: 8517.62.0050 |
| Perle Limited Lifetime Warranty |
