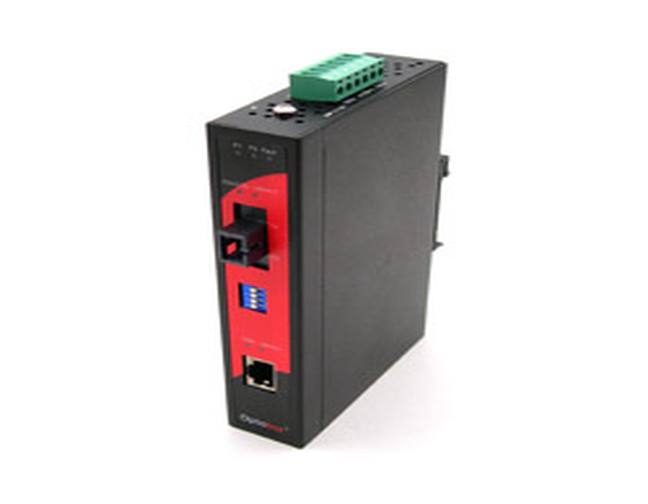

Antaira IMC-100A-WB-S2 - *Discontinued - 10/100TX To 100FX Industrial Media Converter, Single Fiber (WDM-B), Single-Mode 20KM, T
by ANTAIRA
|
|
|
|
IMC-100A-WB-S2_SUMMARY.html
- UTP to WDM Fiber Media Converter
- RJ-45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
- Wide-range Redundant Power Design
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
| Mfg SKU # : | IMC-100A-WB-S2 |
|
|
|
IMC-100A-WB-S2_DESCRIPTION.html
Antaira Technologies IMC-100A-WB-S2 is a industrial grade, WDM, fast Ethernet, single-mode fiber media converter. The IMC-100A-WB-S2 conforms to the FCC emissions standards and is housed in a metal case. The IMC-100A-WB-S2 features a singular SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3u and 802.3x standards. The IMC-100A-WB-S2 is a 10/100 single mode fiber media converter capable of communication of up to 20 kilometers. The IMC-100A-WB-S2 is a WDM industrial media converter with fiber communication on the TX1550NM - RX1310nm.
|
|
|
|
