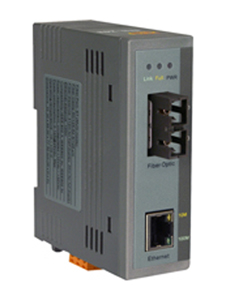

NS-200FC - 1 Port Fiber Optic, 1 Port 10/100M RJ 45 Connector, Multi Mode, SC connector, Plastic Case by ICP DAS
|
|
|
*For Multi Mode Use* 10/100BaseT Ethernet to Fiber Optics 100BaseFX Converter. The Ethernet supports 10/100M Auto-Negotiation and Auto MDI/MDIX functions. Has SC connector, supports operating temperatures from 0 ~ +70°C
|
|
|
The NS-200FC operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200FC is just 32.30 mm, so it can be used where space is important.
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 1.4Gbps high performance memory bandwidth.
- Frame buffer memory:512 Kbit
- Integrated look-up engine with dedicated 1 K unicast MAC addresses.
- Supports +10~+30Vdc voltage
Reverse Polarity Protection
- Supports operating temperatures from 0 ~ +70°C
- DIN rail mount for industrial usage
- Compatibility: IEEE 802.3, IEEE802.3u, IEEE802.3x
>
- Interface: 10/100 Base-T and 100 Base-FX
- Ethernet Port: 10/100 Mbps x 1
- Fiber Optic Port: 100 Mbps x 1 (Multi-mode)
- Provides LEDs for network and power monitoring
- ESD Protection:
- 8 KV Contact Discharge
- 15KV Air-Gap Discharge
- Fiber Optic Transmission distance:
Multi mode fiber: 50/125, 62.5/125 or 100/140 μm
Multi mode fiber, 412 m for half duplex, 2 km for full duplex.
- Ethernet Cables:
- 10 Base-T (Cat.3, 4,5 UTP cable; 100m Max.)
- 100 Base-T (Cat.5 UTP cable; 100m Max.)
- Environment:
- Operating temperature: 0 °C ~ +70°C
- Storage Temperature: -20 ~ +85°C
- Relative Humidity: 10% to 90% non-condensing
- Dimensions: 32.30 x 99.00 x 77.50 mm (W x H x D)
- Power requirements: +10 to 30Vdc (Removable Terminal Block)
- Power consumption: 0.12A@24Vdc (± 5%, arrowed)
|
|
