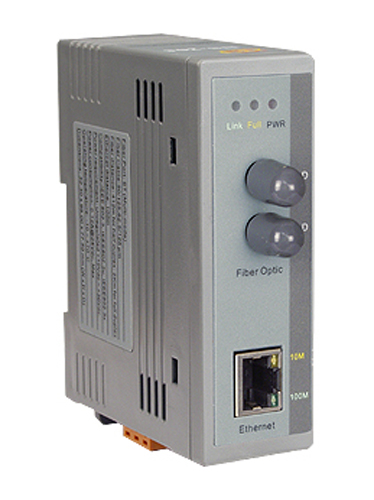

The NS-200FT is a Ethernet(10/100Base-TX) to Fiber Optic(100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function.
The NS-200FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables.
It contains "soft start" function with overload protection, high-low voltage protection.
The width of the NS-200FT is just 32.30 mm, so it can be used where space is important.
Automatic MDI / MDI-X crossover for plug-and-play
Each port supports both 10/100 Mbps speed auto negotiation
Store-and-forward architecture
Full duplex IEEE 802.3x and half duplex backpressure flow control
1.4Gbps high performance memory bandwidth.
Frame buffer memory : 512 Kbit
Integrated look-up engine with dedicated 1 K unicast MAC addresses.
MTBF = 438,000 hours ( Temperature is 25 °)
MTBCF = 525,600 hours ( Temperature is 25 °)
Supports +10~+30Vdc voltage
Reverse Polarity Protection
