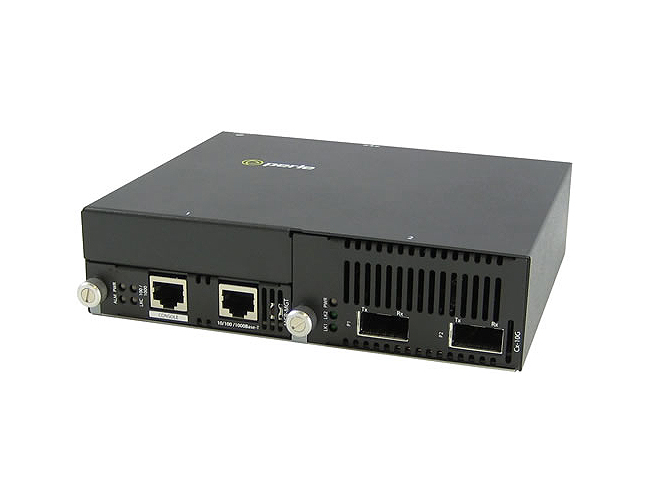

05071184 SMI-10G-XTXH - 10 Gigabit Ethernet IP-Managed Stand-Alone Media Converter with dual XFP slots (empty). Support Power Le by PERLE

05071184 SMI-10G-XTXH - 10 Gigabit Ethernet IP-Managed Stand-Alone Media Converter with dual XFP slots (empty). Support Power Le
by PERLE

Write a review
Mfg SKU # : 05071184
List Price : $4,601.00
Our Price : $3,911.00
In Stock :Call for Availability
Quantity :

Perle SMI-10G Managed Media Converters transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber in environments where network security is critical. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion.

SMI-10G Managed Media Converters support all authentication, authorization and accounting (AAA) security services used in corporate networks, including TACACS+, RADIUS, LDAP, Kerberos, NIS and RSA. To further protect ID’s and passwords from someone ‘snooping’ on the network, Perle Managed Media Converters provide secure management sessions by supporting SSH, SNMPv3, Telnet and HTTPS. These types of features are used when managing your corporate firewalls, switches and routers. This is why Perle makes them available in the SMI-10G Managed Media Converter. 10G Media Converters are also available for unmanaged applications.

Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.

The empty transceiver ports on the SMI-10G Media Converters allow for flexible network configurations to meet any requirement using a variety of 10G transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFP+ and XFPs. You can use these products to convert:

  • SFP+ to SFP+
  • XFP to XFP
  • XFP to SFP+
  • SFP to SFP ( 1000Base-x to 1000Base-x )
  • SFP+ to CX4

Perle 10 Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing 10GbE link. Network Administrators can “see-everything” with Perle’s advanced features such as Smart Link Pass-Through, Fiber Fault Alert, a built-in Link Test capability and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle SMI-10G Media Converters the smart choice for IT professionals.

SMI-10G Managed Media Converter Features

Smart Link Pass-Through When the Smart Link Pass-Through switch is enabled (default), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS.

When the switch is in the down position, Smart Link Pass-Through is disabled. If a link loss is detected on one port, the transmit signal remains enabled on the other port.
Fiber Fault Alert With Fiber Fault Alert the state of the 10 Gigabit Ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G Ethernet interface of the media converter.
3R – Optical Signal Regeneration Optical signal regeneration: 3R ( Re-amplify, Reshape, and Retime the signal ) ensures that there is a quality link at 10 Gigabit speeds.
Built-in Link Test When enabled, the built-in packet generator transmits Ethernet test frames to its 10 Gigabit Ethernet peer. The remote media converter will auto-detect the test frames and loopback the test frames. Any frames received in error, will cause the Power, LK1 and LK2 LEDs to illuminate in a specific combination to identify the error. During the test different bit test patterns will be utilized every 5 seconds ensuring a thorough link test.
Test Mode Auto-detect When enabled through the management interface, the remote media converter will enter test mode automatically when requested by its central site peer. This virtually eliminates unnecessary truck rolls to a remote site when diagnosing a link failure.
EDC Mode Control Electronic Dispersion Compensation (EDC) is an algorithmic method used to compensate for optical dispersion that occurs on high speed 10 Gigabit links. EDC mode settings are automatically configured by the media converter based on the information retrieved from the SFP+ or XFP module. This will enable proper operation for extended multimode 10GBase-LRM as well as active or passive copper cabling.
Module Temperature Protection Protects your DOM/DMI capable SFP+ or XFP module by monitoring its internal temperature and will automatically shut down the XFP or SFP if the module is operating above its maximum temperature threshold.
High Power Level 4 XFPs High powered Level 4 XFPs are supported in XTSH and XTXH models.
Gigabit SFP support The 10 Gigabit media converter model with dual SFP+ slots can also support Gigabit (1000Base-X) SFPs. This allows users to use Gigabit SFPs today and migrate to 10G SFP+ in the future. Both slots must be populated with Gigabit SFPs.
Jumbo Packets Transparent to jumbo packets.
VLAN Transparent to VLAN tagged packets.
Remote Loopback Capable of performing a loopback on each 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
Configuration Mode selection Select whether to use the on-board DIP switches or the management software for mode selection.
Converter Information
  • Media converter model and serial
  • User configurable name
  • User configurable fiber port name
  • Hardware revision number
  • Firmware version number
Module DIP switch settings View hardware DIP switch settings.
Port Control Enable or disable individual fiber ports on the module.
Fiber Port Status
  • Port Enabled (Yes/No)
  • Connector
  • Link Status (Up/Down)
  • Fiber Fault Alert (OK, Failed)
  • Fiber Loopback mode (On/Off)
Control
  • Reset
  • Reset to factory default
  • Ability to specific read/write phy registers
  • Update firmware
  • Fiber Loopback mode (Yes/No)
  • Upload/download configuration
Manage Tune-able DWDM XFP modules Select transceiver ITU 50GHz center wavelengths and channel numbering on tune-able XFP transceivers.

SMI-10G Advanced Management Features

Enterprise and carrier-grade security is available through the support of strong authentication systems such as TACACS+, RADIUS and LDAP. Secure in-band access is assured via SNMPv3, SSH CLI and secure HTTPS Internet browser.

SNMP
  • Full read/write capabilities via central SNMP servers and PerleVIEW
  • Send SNMP traps ( up to 4 servers )
  • SNMPv3, V2C and V1
  • SNMPv3 – encryption and authentication for both management and trap support
  • RFC1213 MIB II
  • Proprietary MIB provided
Telnet / SSH CLI access In-band command line access via Telnet or SSH application.
Internet Browser access
Console port CLI access Out-of-band command line access via Cisco compatible RJ45 serial console port using common “rolled” CAT5 cable.
Console port can be enabled ( default ) or disabled.
Concurrent management sessions Run multiple management sessions simultaneously for multiple users.
Inactivity timeout Protect secure management sessions by setting an inactivity timeout value.
Alert event reporting Alert level events are stored in the local event log and sent as:

  • SNMP traps to up to 4 servers
  • SYSLOG messages to a SYSLOG server
  • Email to user defined email address
Advanced IP feature set
  • IPV4 and IPV6 address support
  • DHCP
  • DNS
  • Dynamic DNS
  • NTP
  • TFTP
  • Telnet
  • SSH V2 and V1
  • HTTP
  • HTTPS
Advanced Management User Authorization and Accounting with primary and secondary server support
  • TACACS+
  • RADIUS
  • LDAP
  • Active Directory via LDAP
  • RSA Secure ID-agent or via RADIUS authentication
  • Kerberos
  • NIS
Encryption
  • AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
  • Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
  • Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
  • X.509 Certificate verification: RSA, DSA
Access Control List An access control list can be created which can filter out only those workstations that are authorized to access the management resources. Filter on IP and/or Ethernet MAC addresses.
Network Services Filter Enable only those network services on the management module that are allowed on your network ( Telnet, SSH, HTTP, HTTPS, SNMP ).
Firmware download Update the latest level firmware for management and media converter modules via TFTP or PerleVIEW.

Media converter with dual XFP slots (empty)

Power Dual SFP Dual XFP XFP to SFP
Input Supply Voltage 12 vDC Nominal
Maximum Current Amps @ 12v DC 0.8 XTX: 1.25

XTXH: 1.6

XTS: 1.0

XTSH: 1.6

Maximum Power * Requirements (watts) 9.7 * XTX: 15.0 *

XTXH: 19.3 *

XTS: 12.0 *

XTSH: 19.3 *

Power Connector 5.5mm x 9.5mm x 2.1mm barrel socket
Power Adapter
Universal AC/DC Adapter 100-240v AC, regulated AC/12v DC adapter included

STS and XTS : 12 watt adapter

XTX, XTXH and XTSH : 24 watt adapter
Indicators
Power / TST
  • On: Power indication and in normal operation
  • Blinking slowly: the unit is in loopback or test mode (either port)
  • Blinking quickly: the unit has a hardware error (Err LED will also be on)
LK1, LK2
  • On: Fiber link present
  • Blinking quickly: Fiber link present and receiving data.(including test data)
  • Blinking slowly: Fiber link disabled because the other fiber link went down.
  • Blinking 1 sec on 3 sec off – invalid SFP+ or XFP inserted
  • Blinking twice then 3 sec off – module shut down due to high temperature.
  • LK1, LK2 alternating on and off – 1 sec on 1 sec off incompatible Speeds ( Err LED will also be on)
  • Off: No fiber link present or no module inserted
ERR LED When in test mode – this indicates test mode errors – will clear when the link has recovered
  • If Power LED is blinking, this indicates a hardware error
  • If LNK LEDS blink, this indicates that there is a module compatibility error
Switches - accessible through a side opening in the chassis
Smart Link Pass-Through When the Smart Link Pass-Through switch is enabled ( default ), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS.

When the switch is in the down position, Smart Link Pass-Through is disabled. If a link loss is detected on one port, the transmit signal remains enabled on the other port.

Fiber Fault Alert Enabled (Default - Up)
With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter

Disabled (Down)

EDC Mode Electronic Dispersion Compensation is an algorithmic method used to compensate for optical dispersion that occurs on high speed 10 Gigabit links. EDC mode settings are automatically configured by the media converter based on the information retrieved from the SFP+ or XFP module. This will enable proper operation for extended multimode 10GBase-LRM as well as active or passive copper cabling.

In the default UP switch position the media converter will automatically set the 10G transceiver to match the EDC type declared by the SFP+ / XFP module to either to “linear” or “limiting”.

In the event that there is a mismatch, setting the switch to the Down position on the media converter will flip the setting to that declared by the module.

Loopback Capable of performing a loopback on each 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
Connectors Dual SFP Dual XFP XFP to SFP
Pluggable 10G Fiber Transceiver slots ( Hot insertion and removable) Two 10 Gigabit SFP+ Slots
  • Power level 1, 2
Two 10 Gigabit XFP Slots
  • Power level 1,2,3
  • Power Level 4 (XTSH model)
One 10 Gigabit SFP+
  • Power Level 1, 2
One 10 Gigabit XFP
  • Power level 1,2,3
  • Power Level 4 (XTSH model)
Voltages supplied to XFP slots - 1.8V, 3.3V, 5V and -5.2V 1.8V, 3.3V, 5V and -5.2V
Supported 10 Gigabit Fiber pluggable transceivers IEEE 802.3ae compliant:
  • 10GBase-SR
  • 10GBase-LRM
  • 10GBase-LR
  • 10GBase-ER
  • 10GBase-ZR
CWDM/DWDM
IEEE 802.3ae compliant:
  • 10GBase-SR
  • 10GBase-LRM
  • 10GBase-LR
  • 10GBase-ER
  • 10GBase-ZR
CWDM/DWDM
IEEE 802.3ae compliant:
  • 10GBase-SR
  • 10GBase-LRM
  • 10GBase-LR
  • 10GBase-ER
  • 10GBase-ZR
CWDM/DWDM
Supported 10 Gigabit Copper pluggable transceivers SFP+ Direct Attach Cable (DAC). Also known as:
  • Twinax
  • 10GBase-CU
  • 10GSFP+Cu
  • 10GBase-CX1
  • 10GBase-CR1
Note: Passive and Active cable types supported
IEEE 802.3ak compliant:
  • XFP 10GBase-CX4 copper
SFP+ Direct Attach Cable (DAC). Also known as:
  • Twinax
  • 10GBase-CU
  • 10GSFP+Cu
  • 10GBase-CX1
  • 10GBase-CR1
Note: Passive and Active cable types supported

IEEE 802.3ak compliant:
  • XFP 10GBase-CX4 copper
Supported Gigabit Fiber SFPs 1000Base-SX

1000Base-LX/LH

1000Base-EX

1000Base-ZX

1000Base-BX

CWDM/DWDM

Note: In this mode both SFP modules must operate 1000Base-X

N/A N/A
Environmental Specifications Dual SFP Dual XFP XFP to SFP
Operating Temperature 0° C to 50° C (32° F to 122° F)
Storage Temperature minimum range of -25° C to 70° C (-13° F to 158° F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
( BTU/HR )
13.1 * XTX: 51.2 *

XTXH: 65.9 *

XTS: 40.9 *

XTSH: 65.9 *

MTBF (Hours)** Without power adaptor: 194,615

With power adaptor: 138,338

Without power adaptor: 184,350

With power adaptor: 139,590

Without power adaptor: 184,350

With power adaptor: 133,071

Mounting
Din Rail Kit Optional
Wall / Rack Mount Kit Optional
Product Weight and Dimensions
Weight 0.93 Kg, 2.1 lbs
Dimensions 175 x 145 x 46mm, 6.9 x 5.7 x 1.8 inches
Packaging
Shipping Weight STS and XTS : 1.2 Kg, 2.6 lbs

XTX, XTXH and XTSH : 1.5 Kg, 3.3 lbs

Shipping Dimensions 300 x 200 x 70 mm, 11.8 x 7.9 x 2.8 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
EN61000-3-2
Immunity EN55024
Electrical Safety UL 60950-1
EN60950
CE
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A992A
HTSUS Number: 8517.62.0050
Perle Limited Lifetime Warranty
