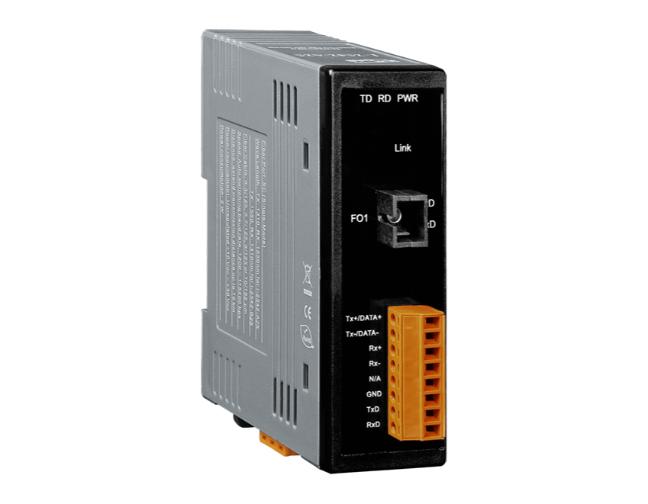

The I-2542-B25 of Single-Strand Fiber Converters supports Wavelength
Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and
receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but
also effectively reduces the cost of creating a new fiber optic infrastructure.
The I-2542-A25 and I-2542-B25 is a pair.
I-2542-B25.html
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232/422/485 |
| Baud Rate |
1200 ~ 115200 bps |
| Fiber |
| Ports |
Single-Mode; SC connector x 1 |
| Fiber Cable |
8.3/125, 8.7/125, 9/125 or 10/125 µm |
| Transmission Distance (LoS) |
25 km (9/125 µm recommended) |
| Wavelength |
TX: 1550, RX: 1310 nm |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Non-isolated) |
| Consumption |
2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 89 x 107 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 C |
| Storage Temperature |
-30 ~ +75 C |
| Humidity |
10 ~ 95% RH, Non-condensing |
