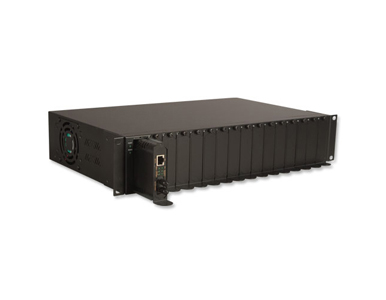

Advantech EIS-RACK-16 - Discontinued - MEDIA CONVERTER 19 INCH 2U RACK CHASSIS - Discontinued - 16 SLOTS
by Advantech
|
|
|
|
- New Gigabit option
- Desk or wall mount as stand-alone product or install in 19-inch rack system
- Rack Chassis
- Holds up to 16 of the EIS series media converters
- Includes one power supply, purchase a second for redundancy
- Standard 19-inch rack mount size (2U height)
- Front panel LEDs for power status
- Hot swappable (both media converters and power supply)
- Two removable cooling fans for ventilation in the chassis
|
|
|
House up to sixteen Media Converters and Ethernet Extenders (EIS series) Non-stop operation and minimal downtime Hot-swappable: Media Converters, Ethernet Extenders, and redundant power supply modules. Redundant 100 - 240VAC 50 - 60Hz Internal Universal PSU or 48VDC Power inputs, Power redundancy: The other redundant power supply module is capable of taking over immediately if one of the power supply modules fails Load sharing: Two internal power supply modules provided for load sharing purposes Power isolation: Media Converter and Ethernet Extender bay power isolation ensures each bay is electrically isolated from each otherOver current protection: Fuse on PCBA for each Media Converter and Ethernet Extender bay and power supply module0°C to 45°C (32°F to 113°F) operating temperature range Metal case, standard 19" rack-mount size, two-unit-height Supports Rack Mounting installation.
Capacity |
Houses up to 16 media converters |
Power |
One power supply included, second optional hot-swappable |
Cooling |
One fan on the left and right side of the chassis |
LED Indicators |
One LED for each power supply’s power status) |
Dimensions |
17.3 x 10.9 x 3.5 in (44 x 27.6 x 9 cm) Standard 19 inch, 2U size |
Net Weight |
8.5kg approx. (with sixteen media converters) |
|
|
|
|
|
|
