| Power |

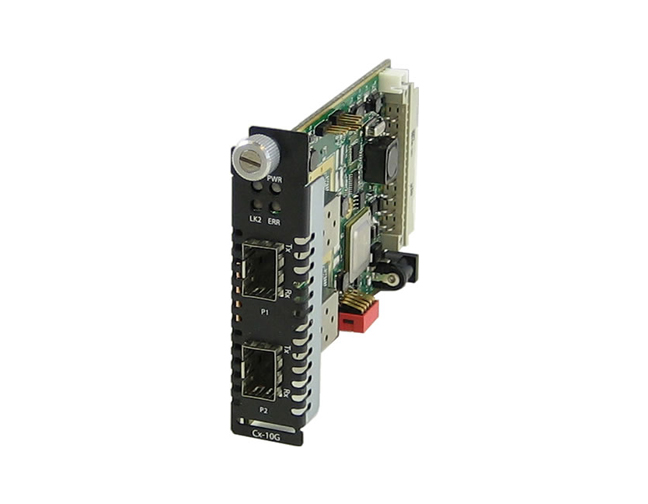

Dual SFP |
Dual XFP |
XFP to SFP |
| Maximum Power Consumption (watts) |
C-10G: 6.7
C-10GR: 17.2* |
XTX: 12.0 *
XTXH: 16.3 * |
XTS: 9.1 *
XTSH: 16.3 * |
| Total Transceiver Power Supported (watts) |
3.0 |
XTX: 7.0
XTXH: 11.0 |
XTS: 5.0
XTSH: 7.0 |
| Indicators |
| Power / TST |
- On: Power indication and in normal operation
- Blinking slowly: the unit is in loopback or test mode (either port)
- Red solid: the unit has a hardware error (upon power up)
- Red and blinking: the unit has a hardware error specified by combination of LK1 and LK2
|
| LK1, LK2 |
- On: Fiber link present
- Blinking quickly: Fiber link present and receiving data.(including test data)
- Blinking slowly: Fiber link disabled because the other fiber link went down.
- Blinking 1 sec on 3 sec off – module shut down due to high temperature.
- Off: No fiber link present or no module inserted
|
| Switches |
| Smart Link Pass-Through |
When the Smart Link Pass-Through switch is enabled (default), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS.
When the switch is in the down position, Smart Link Pass-Through is disabled. If a link loss is detected on one port, the transmit signal remains enabled on the other port. |
| Fiber Fault Alert |
Enabled (Default - Up)
With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter
Disabled (Down) |
| EDC Mode |
Electronic Dispersion Compensation (EDC) is an algorithmic method used to compensate for optical dispersion that occurs on high speed 10 Gigabit links. EDC mode settings are automatically configured by the media converter based on the information retrieved from the SFP+ or XFP module. This will enable proper operation for extended multimode 10GBase-LRM as well as active or passive copper cabling.
In the default UP switch position the media converter will automatically set the 10G transceiver to match the EDC type declared by the SFP+ / XFP module to either to “linear” or “limiting”.
In the event that there is a mismatch, setting the switch to the Down position on the media converter will flip the setting to that declared by the module. |
| Loopback |
Capable of performing a loopback on each 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link. |
| Connectors |
Dual SFP |
Dual XFP |
XFP to SFP |
| Pluggable 10G Fiber Transceiver slots ( Hot insertion and removable) |
Two 10 Gigabit SFP+ Slots
|
Two 10 Gigabit XFP Slots
- Power level 1,2,3
- Power Level 4 (XTSH model)
|
One 10 Gigabit SFP+
One 10 Gigabit XFP
- Power level 1,2,3
- Power Level 4 (XTSH model)
|
| Voltages supplied to XFP slots |
- |
1.8V, 3.3V, 5V and -5.2V |
1.8V, 3.3V, 5V and -5.2V |
| Supported 10 Gigabit Fiber pluggable transceivers |
IEEE 802.3ae compliant:
- 10GBase-SR
- 10GBase-LRM
- 10GBase-LR
- 10GBase-ER
- 10GBase-ZR
CWDM/DWDM |
IEEE 802.3ae compliant:
- 10GBase-SR
- 10GBase-LRM
- 10GBase-LR
- 10GBase-ER
- 10GBase-ZR
CWDM/DWDM |
IEEE 802.3ae compliant:
- 10GBase-SR
- 10GBase-LRM
- 10GBase-LR
- 10GBase-ER
- 10GBase-ZR
CWDM/DWDM |
| Supported 10 Gigabit Copper pluggable transceivers |
SFP+ Direct Attach Cable (DAC). Also known as:
- Twinax
- 10GBase-CU
- 10GSFP+Cu
- 10GBase-CX1
- 10GBase-CR1
Note: Passive and Active cable types supported |
IEEE 802.3ak compliant:
|
SFP+ Direct Attach Cable (DAC). Also known as:
- Twinax
- 10GBase-CU
- 10GSFP+Cu
- 10GBase-CX1
- 10GBase-CR1
Note: Passive and Active cable types supported
IEEE 802.3ak compliant:
|
| Supported 2.5 Gigabit Copper pluggable transceivers |
S-10GR Model:
SFP+ Direct Attach Cable (DAC).
Note: Passive and Active cable types supported |
N/A |
N/A |
| Supported Gigabit Fiber SFPs |
1000Base-SX
1000Base-LX/LH
1000Base-EX
1000Base-ZX
1000Base-BX
CWDM/DWDM
Note: In this mode both SFP modules must operate 1000Base-X |
N/A |
N/A |
| Chassis Slot profile |
One slot |
XTX: one slot
XTXH: two slots |
XTS: one slot
XTSH: two slots |
| Environmental Specifications |
Dual SFP |
Dual XFP |
XFP to SFP |
| Operating Temperature |
0° C to 50° C (32° F to 122° F) |
| Storage Temperature |
minimum range of -25° C to 70° C (-13° F to 158° F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
C-10G: 22.9
C-10GR: 59 |
XTX: 39.2
XTXH: 55.6 |
XTS: 31.0
XTSH: 55.6 |
| MTBF (Hours)** |
C-10G: 367,714
C-10GR: 190,717 |
335,191 |
335,191 |
| Packaging |
| Shipping Weight |
0.25 Kg, 0.55 lbs |
| Shipping Dimensions |
Standard Power Models: 150 x 210 x 40 mm, 5.9 x 8.3 x 1.6 inches
High Power models ( XTXH, XTSH ): 170 x 260 x 70 mm, 6.7 x 10.2 x 2.8 inches |
| Regulatory Approvals |
| Emissions |
FCC Part 15 Class A, EN55022 Class A |
CISPR 22 Class A
CISPR 32:2015/EN 55032:2015 (Class A) |
| EN61000-3-2 |
| Immunity |
EN55024 |
| Electrical Safety |
UL 60950-1 |
IEC 60950-1(ed 2); am1, am2
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| CE |
| Laser Safety |
Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product. |
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991 |
| HTSUS Number: 8517.62.0050 |
| Perle Limited Lifetime Warranty |
