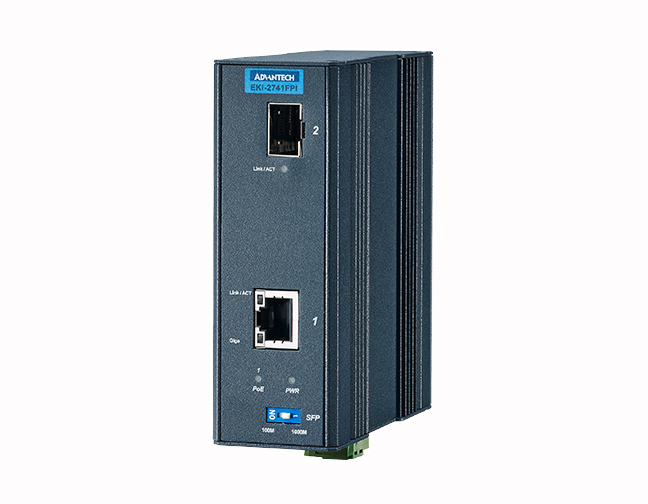

Advantech EKI-2741FPI-AE - Gigabit Media Converter SFP with 1x PoE 802.3at
by Advantech
|
|
|
|
- Supports multi-rate for SFP slot
- IEEE 802.3af/at compliant
- Power input 48 VDC, supply 30W per port
- Provides slim size and DIN-rail/Wall mount with IP31 metal mechanism
- Supports operating temperatures from -40 to 75°C
| Mfg SKU # : | EKI-2741FPI-AE |
|
|
|
EKI-2741FPI-AE, With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2741FPI / EKI-2742FPI are compliant IEEE 802.3af/at and supply to 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C.
Communications |
Standard |
IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab |
LAN |
10/100/1000Base-T (X) |
Transmission Distance |
Ethernet: Up to 100 m |
Transmission Speed |
Up to 1000 Mbps |
Interface |
Connectors |
100/1000Base-X (SFP)
10/100/1000Base-T/TX
2-pin removable screw terminal |
LED Indicators |
PWR, PoE Status, Link/Activity |
Power |
Power Consumption |
EKI-2741FPI: Max. 34 W (Full load PoE+)
EKI-2742FPI: Max. 63.5 W (Full load PoE+) |
Power Input |
48 VDC (Single input) |
Power Output |
30W |
Mechanism |
Enclosure |
IP31, Metal shell with solid mounting kits |
Dimensions (WxHxD) |
36.7 x 108.4 x 103.5 mm (1.44" x 4.27" x 4.07") |
Mounting |
DIN-rail, Wall |
Protection |
Power Reverse |
Present |
Overload current |
Present |
Environment |
Operating Temperature |
-40 ~ 75°C (-40 ~ 167°F) |
Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
Operating Humidity |
10 ~ 95% (non-condensing) |
Storage humidity |
0 ~ 95% (non-condensing) |
MTBF |
743,594 hours (EKI-2741FPI)
717,339 hours (EKI-2742FPI) |
Certification |
Safety |
UL/cUL 508 Class I, Division 2, Groups A, B, C and D |
EMI |
CE, FCC Class A |
EMC |
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8 |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
|
|
|
|
