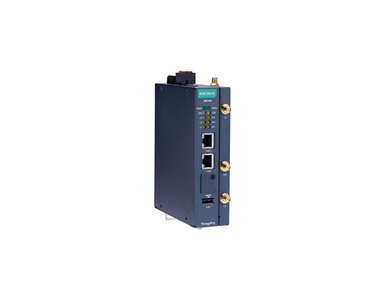

AIG-301-T-US-AZU-LX, the AIG-301 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge software are preloaded and seamlessly integrated with the AIG-301 Series to enable easy, reliable, yet secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever. Thanks to the robust OTA function, you never have to worry about system failure during software upgrades. With the secure boot function enabled, you can enable the booting process of AIG-301 Series to prevent malicious software injection.
Appearance
AIG-301-T-AZU-LX
AIG-301 US, EU, AP, and CN Models
CPU
Armv7 Cortex-A7 dual-core 1 GHz
DRAM
2 GB DDR3L
Storage Pre-installed
16 GB eMMC GB eMMC
Pre-installed OS
Moxa Industrial Linux (Debian 9, Kernel 4.4)
TPM
TPM v2.0
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports
RS-232/422/485 ports x 2, software selectable (DB9 male)
CAN Ports
CAN 2.0 A/B x 1 (DB9 male)
Digital Input
DIs x 4
Digital Output
DOs x 4
USB 2.0
USB 2.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector
RP-SMA x 2 (excluding AIG-301-AZU-LX/T-AZU-LX models)
Cellular Antenna Connector
SMA x SMA x 2 (excluding AIG-301-AZU-LX/T-AZU-LX models)
GPS Antenna Connector
SMA x SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)
Expansion Slots
mPCIe slot x 1: AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZULX,
AIG-301-AP-AZU-LX/T-AP-AZU-LX
mPCIe slot x 2: AIG-301-CN-AZU-LX/T-CN-AZU-LX
ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity
None, Even, Odd, Space, Mark
Stop Bits
1, 1.5, 2
Isolation
N/A
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
No. of Ports
1
Connector
DB9 male
Baudrate
10 to 1000 kbps
Industrial Protocols
CAN 2.0A, CAN 2.0B
Signals
CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Isolation
2 kV (built-in)
Connector
Spring-type Euroblock terminal
Dry Contact
Off: open
On: short to GND
Wet Contact (DI to COM)
On: 10 to 30 VDC
Off: 0 to 3 VDC
Isolation
3K VDC
Sensor Type
Wet contact (NPN)
Dry contact
Connector
Spring-type Euroblock terminal
Current Rating
200 mA per channel
I/O Type
Sink
Voltage
24 VDC nominal, open collector to 30 VDC
Cellular Standards
LTE CAT-4
Band Options (US)
LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 13 (700 MHz) / LTE Band 17 (700 MHz)
UMTS/HSPA 850 MHz / 1900 MHz
Carrier Approval: Verizon, AT&T
Band Options (EU)
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
Band Option (APAC)
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
Receiver Types
72-channel u-blox M8 engine
GPS/GLONASS/Galileo
Accuracy
Position: 2.5 m CEP
SBAS: 2.0 m CEP
Acquisition
Aided starts: 3 sec
Cold starts: 26 sec
Sensitivity
Cold starts: -148 dBm
Tracking: -164 dBm
System
Power x 2
User x 1
SIM card indicator x 1
Wireless Signal Strength
Cellular/Wi-Fi x 6
ThingsPro Proxy Utility
Yes
Azure IoT Edge Preintegrated
Yes
ThingsPro Edge Preloaded
Yes
No. of Power Inputs
Redundant dual inputs
Input Voltage
12 to 48 VDC
Power Consumption
4.8 W (AIG-301-AZU-LX/T-AZU-LX)
6.0 W (AIG-301-CN-AZU-LX/T-CN-AZU-LX)
8.4 W (AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZU-LX, AIG-
301-AP-AZU-LX/T-AP-AZU-LX)
Input Current
0.4 A @ 12 VDC (AIG-301-AZU-LX/T-AZU-LX)
0.5 A @ 12 VDC (AIG-301-CN-AZU-LX/T-CN-AZU-LX)
0.7 A @ 12 VDC (AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZULX,
AIG-301-AP-AZU-LX/T-AP-AZU-LX)
141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in) (AIG-301-AZU-LX/T-AZU-LX)
141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in) (AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-
EU-AZU-LX/T-EU-AZU-LX, AIG-301-AP-AZU-LX/T-AP-AZU-LX, AIG-301-CN-AZU-LX/TCN-
AZU-LX)
Weight
560 g (1.23 lb) (AIG-301-AZU-LX/T-AZU-LX)
745 g (1.64 lb) (AIG-301-CN-AZU-LX/T-CN-AZU-LX)
750 g (1.65 lb) (AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZU-LX,
AIG-301-AP-AZU-LX/T-AP-AZU-LX)
Ambient Relative Humidity
5 to 95% (non-condensing)
Operating Temperature
Standard Temp. Models:
-20 to 70°C (-4 to 158°F) (AIG-301-US-AZU-LX, AIG-301-EU-AZU-LX, AIG-301-AP-AZULX,
AIG-301-CN-AZU-LX)
-20 to 85°C (-4 to 185°F) (AIG-301-AZU-LX)
Wide Temp. Models:
-40 to 70°C (-40 to 158°F) (AIG-301-T-US-AZU-LX, AIG-301-T-EU-AZU-LX, AIG- 301-TAP-
AZU-LX, AIG-301-T-CN-AZU-LX)
–40 to 85°C (-40 to 185°F) (AIG-301-T-AZU-LX)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Shock
IEC 60068-2-27
Vibration
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
