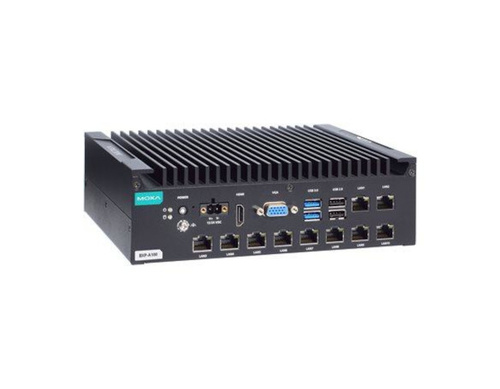

BXP-A100-E4-8L-T - Box type, Atom x6425E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDC
by MOXA

BXP-A100-E4-8L-T - Moxa's industrial-grade, fanless x86 computers have passed rigorous tests and strictly adhere to rigorous industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for heavy industry, power substation and utilities, transportation, oil and gas, and maritime applications.

Computer

• CPU

  • BXP-A100-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
    BXP-A100-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)

• System Memory Slot

  • SODIMM DDR4 slots x 1, up to 32 GB max.

• System Memory Pre-installed

  • 8 GB DDR4

• Storage Slot

  • CFast slot x 1 (SATAIII interface)
    SD slots x 1, SD 3.0 interface (SDHC/SDXC)

• Storage Pre-installed

  • BXP-A100-E2-T-Win10/BXP-A100-E4-T-Win10: 64 GB CFast card

• Supported OS

  • Windows Images and Drivers Supported:
    - Windows 10 IoT Enterprise LTSC 2021 64-bit
    - Windows 11 Professional 64-bit

    Linux Drivers Supported:
    - Debian 11 (kernel 5.10)
    - Ubuntu 22.04 LTS (kernel 5.15)
    - RHEL 9 (kernel 5.14)

• Graphics Controller

  • Intel® UHD Graphics

Computer Interface

• Ethernet Ports

  • BXP-A100-E2-8L-T/E4-8L-T:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
    BXP-A100-E2-2L3C-T/E4-2L3C-T:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
    All Other Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

• Serial Ports

  • BXP-A100-E2-8C-T/E4-8C-T:
    RS-232/422/485 ports x 10, software selectable (DB9 male) x 10
    BXP-A100-E2-2L3C-T/E4-2L3C-T:
    RS-232/422/485 ports x 5, software selectable (DB9 male) x 5
    All Other Models:
    RS-232/422/485 ports x 2, software selectable (DB9 male) x 2

• USB 3.0

  • USB 3.0 hosts x 2, type-A connectors

• USB 2.0

  • USB 2.0 hosts x 4, type-A connectors

• Digital Input

  • DIs x 4

• Digital Output

  • DOs x 4

• TPM

  • TPM v2.0

• Video Output

  • HDMI 2.0b x 1, (type-A connector)
    VGA x 1, 15-pin D-sub connector (female)

• Buttons

  • Reset button
    Power button

Ethernet Interface

• Magnetic Isolation Protection

  • 1.5 kV (built-in)

Serial Interface

• Baudrate

  • 50 bps to 115.2 kbps

• Connector

  • DB9 male

• Data Bits

  • 5, 6, 7, 8

• Parity

  • None, Even, Odd, Space, Mark

• Stop Bits

  • 1, 1.5, 2

• Flow Control

  • RTS/CTS, XON/XOFF

Serial Signals

• RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  • Data+, Data-, GND

• RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Digital Inputs

• Connector

  • Spring-type Euroblock terminal

• Sensor Type

  • Dry contact

• Dry Contact

  • Logic 0: Short to GND
    Logic 1: Open

Digital Outputs

• Connector

  • Spring-type Euroblock terminal

• I/O Type

  • Sink

• Current Rating

  • 200 mA per channel

• Voltage

  • 0 to 24 VDC

LED Indicators

• System

  • Power x 1
    Storage x 1

• LAN

  • 2 per port (10/100/1000 Mbps)

Power Parameters

• Input Voltage

  • 12/24 VDC

• Power Connector

  • Screw-fastened Euroblock terminal

• Power Consumption

  • 50 W

Physical Characteristics

• Housing

  • Metal

• IP Rating

  • IP20

• Dimensions

  • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
    210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)
    BXP-A100-E2-8L-T/E4-8L-T/E2-2L3C-T/E4-2L3C-T:
    210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
    BXP-A100-E2-8C-T/E4-8C-T:
    210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)

• Weight

  • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
    2,015 g (4.44 Ib)
    BXP-A100-E2-8L-T/E4-8L-T:
    2,355 g (5.19 Ib)
    BXP-A100-E2-2L3C-T/E4-2L3C-T:
    2,208 g (4.86 Ib)
    BXP-A100-E2-8C-T/E4-8C-T:
    2,385 g (5.25 Ib)

• Installation

  • Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  • -30 to 60C (-22 to 140F)

• Storage Temperature

  • -40 to 75C (-40 to 167F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A
    BSMI

• EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

• Safety

  • UL 62368-1 (CB)
    BSMI

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-64

• Package Drop Test

  • ISTA 1A

• Package Vibration Test

  • ISTA 1A

Declaration

• Green Product

  • RoHS, CRoHS, WEEE

Reliability

• Time Source

  • Built-in RTC (real-time clock) with lithium-battery backup

• Automatic Reboot Trigger

  • Built-in WDT

MTBF

• Time

  • 556,511 hrs

• Standards

  • Telcordia (Bellcore), GB
