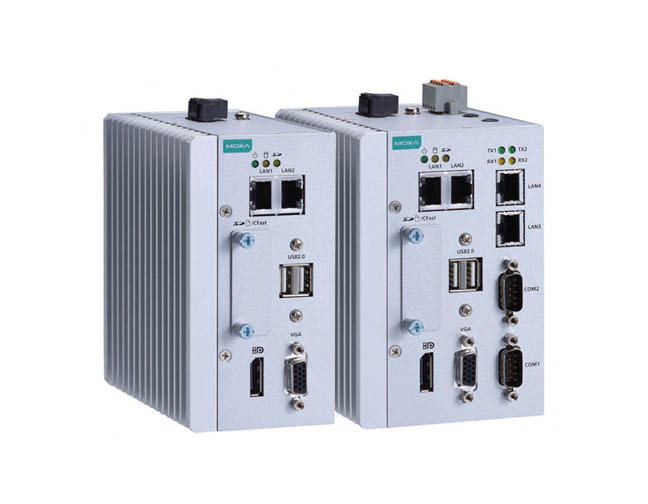

| Hardware Specifications |
| • Computer |
| CPU |
• MC-1100-E4 Series: Intel® Atom™ processor E3845 (quad-core, 1M cache, 1.91 GHz)
• MC-1100-E2 Series: Intel® Atom™ processor E3826 (dual-core, 1M cache, 1.46 GHz) |
| Operating System |
Supports Windows 7 Embedded 64 bits and Linux Debian 8* |
| System Memory |
1 DDR3L SO-DIMM slot, 2 GB pre-installed; support 2 GB, 4 GB, and 8 GB. |
| USB |
USB 2.0 hosts x 2, Type A connectors |
| Storage |
• CFast: 1 CFast socket for OS storage; CFast supports 16 GB, 32 GB, 64 GB and 128 GB
• SD: 1 SD 3.0 (SDHC/SDXC) socket for storage expansion; SD supports 16 GB, 32 GB, 64 GB, and 128 GB (only for the MC-1111 and MC-1121 series) |
| • Other Peripherals |
| USB |
2 bootable USB 2.0 ports (type A) |
| TPM |
TPM1.2 (only for the MC-1112 and MC-1122 series) |
| Expansion Slot |
1 MiniPCIe socket; USB signal for wireless Wifi/3G/LTE modules |
| USIM Slots |
1 |
| • Display |
| Graphics Controller |
Intel® HD Graphics 4000 |
| Display Interface |
• VGA interface x 1: 15-pin D-Sub connector (female), with resolution up to 1920 x 1200 pixels at 75 Hz
• Display port interface x 1: Display port connector, with resolution up to 2560 x 1600 pixels at 60 Hz (only for the MC-1111 and MC- |
| • Ethernet Interface |
| LAN |
2 or 4 auto-sensing 10/100/1000 Mbps ports (RJ45) |
| Magnetic Isolation Protection |
1.5 kV built in |
| • Serial Interface |
| Serial Standards |
2 or 4 RS-232/422/485 ports, software-selectable (DB9 male) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 115.2 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input |
| Input Channels |
DI x 4 (non-isolation) |
| Input Voltage |
Logic level 0: Close to GND
Logic level 1: Open |
| • Digital Output |
| Output Channels |
DO x 4 (Non-Isolation) |
| Output Voltage |
Logic level 0: 0 to 0.55 V
Logic level 1: 5 VDC (4.7 to 5 V) |
| Output Clamping Current |
24 mA |
| • LEDs |
| System |
Power |
| Storage |
CFast, SD |
| LAN |
2 LEDs per port (100/1000 Mbps) |
| Serial |
2 LEDs per port (Tx and Rx) |
| • Physical Characteristics |
| Housing |
Aluminum, sheet metal |
| Weight |
• MC-1111/1112: 1.45 kg (3.20 lb)
• MC-1121/1122: 1.75 g (3.86 lb) |
| Dimensions |
• MC-1111/1112: 132 x 122 x 68 mm (5.20 x 4.81 x 2.68 in)
• MC-1121/1122: 132 x 122 x 87 mm (5.20 x 4.81 x 3.43 in) |
| Mounting |
DIN rail, wall (DNV) |
| • Environmental Limits |
| Operating Temperature |
-40 to 70°C (-40 to 158°F)(DNV: -25 to 70°C) |
| Storage Temperature |
-45 to 75°C (-49 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
• 0.7 g @ DNV GL (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis
• 1 g @ DNV GL, random wave, 3-100 Hz, 2.5 hr per axis |
| Anti-Shock |
50g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ CFast, SD |
| • Power Requirements |
| Input Voltage |
12/24 VDC typical (11.4 to 36 VDC tolerance, 2-pin terminal block)(DNV: 24 VDC) |
| Power Consumption |
Less than 30 W |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| Hazardous Environments |
Class 1 Division 2* |
| EMC |
EN 55032, EN 55024 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 |
| Marine Standards |
IEC 60945 |
| Marine Type Approval |
DNV GL |
| Green Product |
RoHS, cRoHS, WEEE |
| • Reliability |
| Automatic Reboot Trigger |
Built-in watchdog timer (WDT), configurable for resets following 1-255 second hang intervals; software programmable |
| • Software Specifications |
| • Linux |
| OS |
Linux Debian 8 64-bit |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| File System |
EXT2, EXT3, EXT4 |
| Internet Protocol Suite |
TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL |
| Internet Security |
OpenVPN, iptables |
| Secure Shell for Remote Access |
SSH allows remote logins to a secure encrypted console from any connected network |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval (Linux standard API) |
| Embedded Self-Health Maintenance Software |
Moxa Proactive Monitoring |
| • Windows Embedded Standard 7 |
| Core OS |
• 64-bit support
• Remote Client
• Remote Procedure Call |
| Applications and Services Development |
• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM+ Application Support
• MSMQ |
| Internet Services |
• Internet Explorer 8.0
• IIS 7.0 |
| Diagnostics |
• Common Diagnostic Tools
• Problem Reports and Solutions |
| Fonts |
Western, Middle Eastern, South East Asian, and South Asian Fonts |
| Graphics and Multimedia |
• MPEG Layer-3 Audio Codecs (MP3)
• MPEG4 Decoders
• DirectX and Windows Device Experience |
| Management |
• Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update |
| Networking |
• Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony A |
| Security |
• Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS) |
| Embedded Features |
• Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Registry Filter
• WSDAPI for .NET |
| File Systems and Data Store |
• Windows Data Access Components
• Windows Backup and Restore |
| Maintenance |
Moxa Proactive Monitoring & Moxa Smart Recovery |
